Vacuum suctus nucleus solutio est "captiva flexilis" in automatione industriae cum quattuor nucleis commoda: comprehensio non damnosa, aptabilitas ad officinas multi-materia/irregularis, munda et environmental tutela, ac flexibilis operatio. Accommodari potest ad varias industrias notas of officinarum (graciles/crass, exquisitas/crassas, sanitate/vexillas).

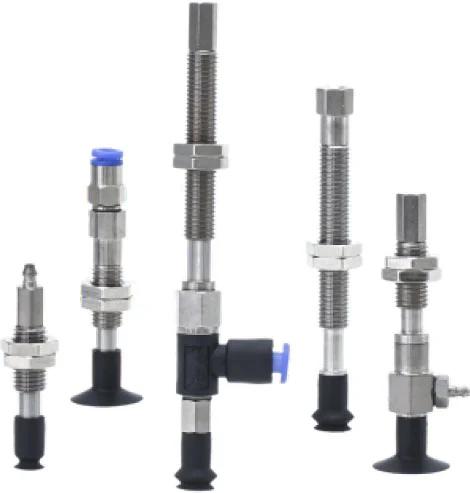

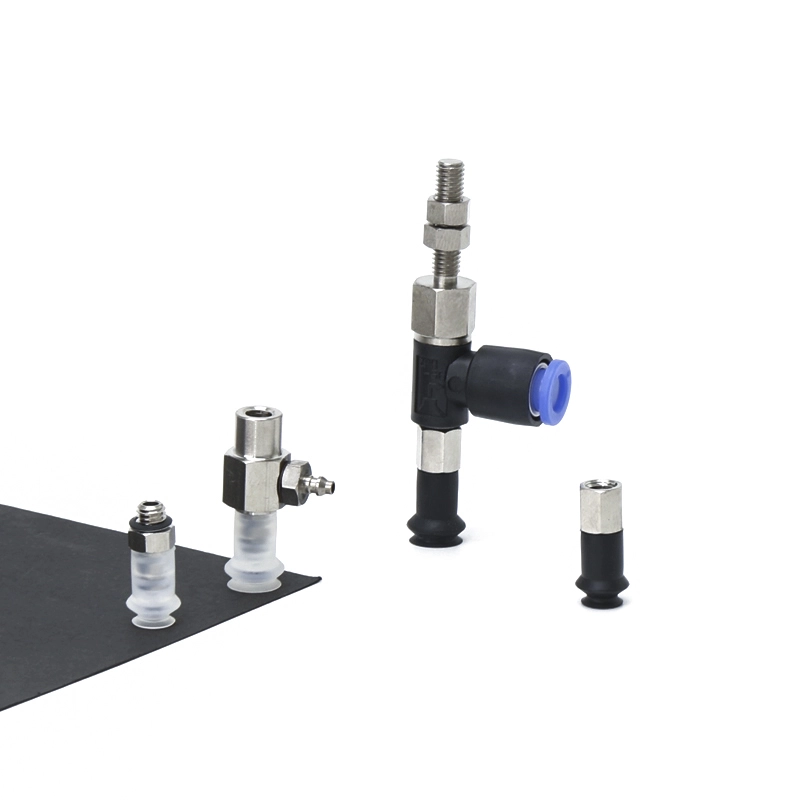

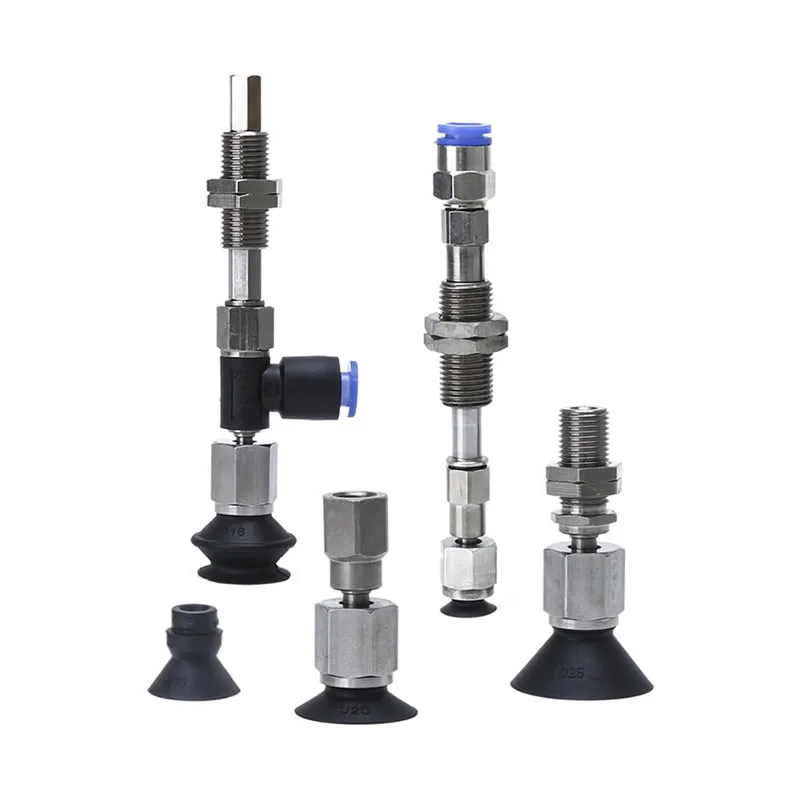

Basic Sine Lok Ring Vacuum Suctionis Cucurbitulae ZP
Sinarum facta Basic Sine Lok Ring Vacuum Suctionis Cucurbitulae ZP significant commoda et puncta venditionis possident: Primo, sumptus efficaciam offerunt. Fundamentum maturae fabricationis levantes, sumptus efficaciter regunt dum operas procurant, inde procurationem expensas in clientes redigunt; Secundo genera productorum diversa cum multiplicibus specificationibus et exemplaribus praebent; Tertio eorum technologia matura est. Utentes materiae premium ut silicone et technologiae pressionis vacuae provectae, firmam adhaesionem et stabilitatem praestant, salvam materiam tractantem spondent; Quarto, eorum copia catena stabilis fulta est catena industrialis domestica robusta et valida productionis capacitas ad partum opportune curandi. Haec commoda domestice efficiunt pocula vacui suctionis valde competitive in campo automationis industrialis.
Click et Satus Electio
Redi ad Product Information
Basic Sine Obfirmo Ring metus ZP Mors Principium
ZP Series Pad Unit
ZPT Series Cum Adapter Vacuum Pads
ZPT Series Cum Buffer Vacuum Pads
ZPR Series Cum Adapter Vacuum Pads
ZPR Series Cum Buffer Vacuum Pads
ZPY Series In nibh Vacuum Pads
ZPY Series Cum Buffer Vacuum Pads
Descriptio
Quam ad Ordinem
Formularium / Material
Applications
Resource
Quid sunt Basic Sine Lok Ring Vacuum Suctionis Cucurbitulae ZP?
Definitio & Function
• Vacuum Gripping Instrumentum:Sigillum creat cum workpiece superficies ad enable elevatio et positioning
• Flexibile Application:Apta superficiebus laevibus, planis vel leviter curvatis
• Automation Support:Adhibentur in armis roboticis, transportatoribus, et systematibus tractandis
Features structuralis
• Ex durabili elastomers ut silicone vel polyurethane
• leve consilio reducitur ad onus robotic systems
• Available in multis diametris et figuris pro diversis applicationibus
Core Commoda
Flexibile & Securus Installation
• Nemo cincinno anulum structuram simplifies ascendens et postea
• reduces institutionem et sustentationem conatus
Certa euismod signantes
• Ensures firmum vacuum tenaci in superficiebus laevibus et non raris
• vacui manet consistent res in celeritate summus
Solutio sumptus-efficax
• Simple structuram dimittit faciens et postea sumptibus
• Specimen pro magna-scala vel summus exolvuntur applications
Dura & gere-resistentes
• High-qualis materiae praebere diu ministerium vitae
• repugnans abrasione et repetita usu
Wide Compatibility
• Compatible cum variis vacui generantibus et systematibus escendentibus
• Apta plures ambitus industriae
Customization & Production Process
Optiones customization
Ad diversas automationis industriales requisita, Basic Sine Lok Ring Vacuum Suctionis Cucurbitulae ZP plene nativus ex materiali electione ad structuris consilium plene nativus esse potest;
• Material Electio
o Silicone (SI): resistentia summus temperatus, specimen electronicarum et ambitus mundi
o Polyurethane (PU): Optimum lapsum resistentia summus orbis operationes
NBR o: sumptus efficens solutio pro applicationes industriae generalis
O libitum anti-static vel cibi gradus materiae ad propria industries
• Magnitudo & Geometria
O amplis diametris ad aequare diversis onus facultatibus
o planae vel parvae folles structurae diversis superficiei conditionibus
• duritia & Elasticitas (A Shore)
o mollior materiae pro mollibus vel fragilibus products
o durius componit pro gravibus officium vel summus celeritas pertractatio
O Optimized statera inter flexibilitatem ac vetustatem
• Adscendens & Interface Compatibility
o Accommodationes variis detentoribus et vacui systemata
O sequela magnitudine et nexu generis matching (metrica, BSP, NPT)
O Integration cum diversis elementis seu adaptors
• Application Imprimis Design
o Anti- lapsus superficies exemplaria meliora tenaci
o oleum repugnans vel eget-repugnans materiae dura ferendum
O summus temperatus vel humilis-temperatus perficientur customization

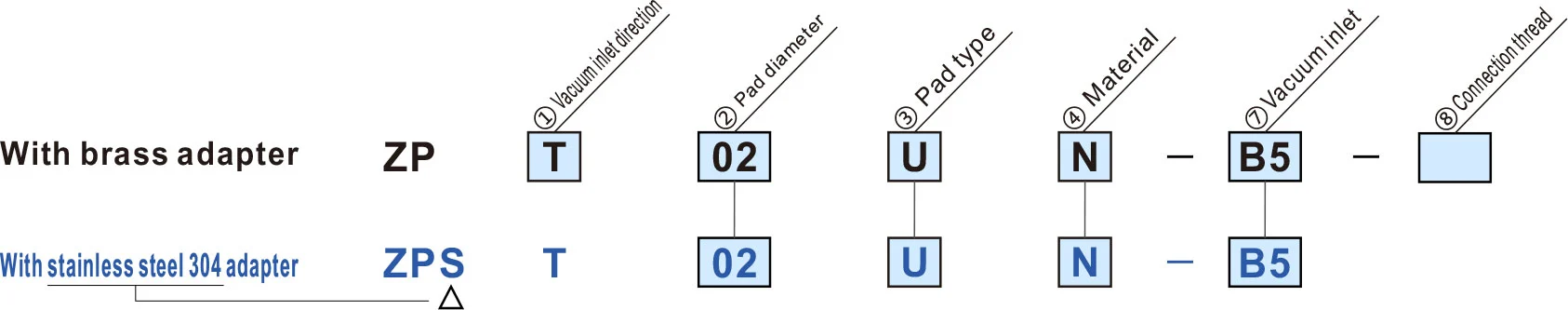

Quam ad Ordinem
|

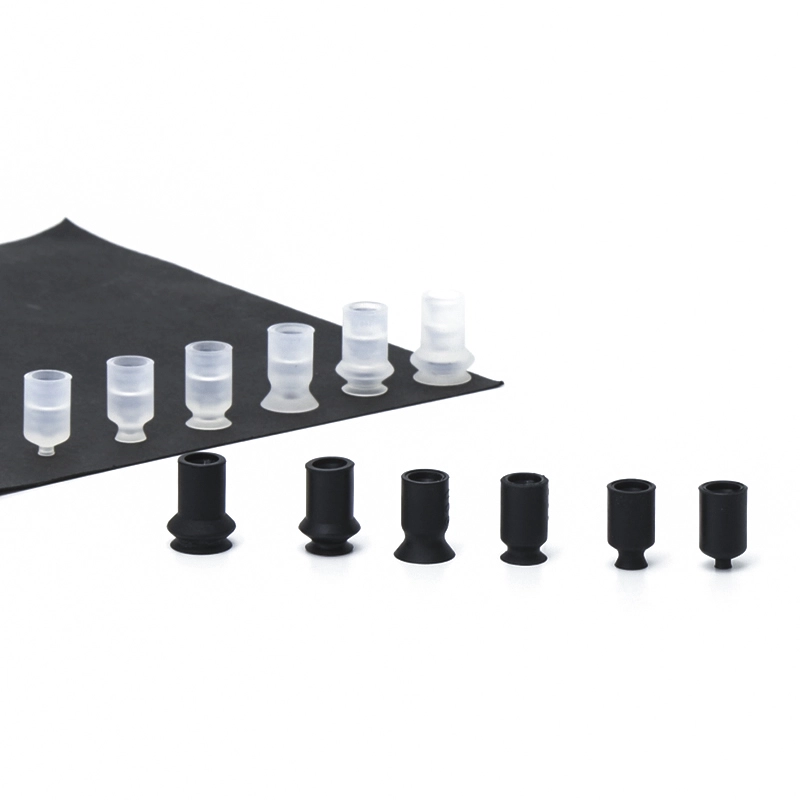

metus type
Codex diameter (mm)
|
02 | 04 | 06 | 08 | 10 | 13 | 16 | 2004 | 3507 | 4010 | |
| 2 | 4 | 6 | 8 | 2 | 4 | 6 | 2×4 | 3.5×7 | 4×10 | ||
| U | Plana Type / Oval Type | ● | ● | ● | ● | — | — | — | ● | ● | ● |
| B | Follis Type | — | — | ● | ● | — | — | — | — | — | — |
| UT | Tenues planae Type | — | — | — | — | ● | ● | ● | — | — | — |
| CT | Tenuis Type cum costis | — | — | — | — | ● | ● | ● | — | — | — |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone rubbe |
Blue symbol is customized models
| Adscendens Dimensiones nibh | |
| Si adaptor fietur a emptore, designabit adaptor cum dimensionibus ius ostensum. |
|
| Vacuum diverticulum directionis | Vacuum inlet | Connection thread | |||||||
| T | Vertical |
|
A5A6 |
— | |||||
|
B4B5 |
— | |||||||
| R | lateralis |
|
0406 |
A5A6 |
|||||
|
B4B5 |
||||||||
| Y |
|
U4N4U6N6B5 |
A5A6 |
||||||
|
B4B5 |
||||||||
| ② Pad diametri genus (mm) | 02 | 04 | 06 | 08 | 10 | 13 | 16 | 2004 | 3507 | 4010 | |
| 2 | 4 | 6 | 8 | 2 | 4 | 6 | 2x4 | 3.5x7 | 4x10 | ||
| U | Plana Type / Oval Type | ● | ● | ● | ● | — | — | — | ● | ● | ● |
| B | Follis Type | — | — | ● | ● | — | — | — | — | — | — |
| UT | Tenues planae Type | — | — | — | — | ● | ● | ● | — | — | — |
| CT | Tenuis Type cum costis | — | — | — | — | ● | ● | ● | — | — | — |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone rubbe |
Hyacintho symbol is amet Donec.
| Connection thread | ||
| Ma le thread | A5 | M5 x 0.8 |
| A6 | M6 x 1.0 | |
| Fema le thread | B4 | M4 x 0.7 |
| B5 | M5 x 0.8 | |
| Vacuum inlet | |||
| Ma le thread | A5 | M5 x 0.8 | |
| A6 | M6 x 1.0 | ||
| Fema le thread | B4 | M4 x 0.7 | |
| B5 | M5 x 0.8 | ||
| Ba rb tting | U4 | Nam -4 mollis Tubing | M-5AU-4 |
| N4 | Nam -4 nylon Tubing | M-5AN-4 | |
| U6 | Nam 6 mollis tubing | M-5AU-6 | |
| N6 | Nam 6 nylon Tubing | M-5AN-6 | |
| Unius tactus tting | 04 | 4 | |
| 06 | 6 | ||
| Vacuum diverticulum directionis | Vacuum inlet | |||||||||
| T | Vertical |
|
B3B5U4N4U6N60406 |
|||||||
| R | lateralis |
|
0406 |
|||||||
| Y |
|
U4N4U6N6B5 |
||||||||
|

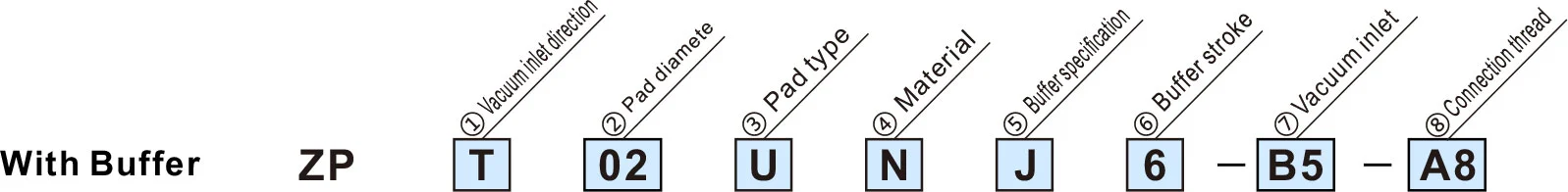

metus type
Codex diameter (mm)
|
02 | 04 | 06 | 08 | 10 | 13 | 16 | 2004 | 3507 | 4010 | |
| 2 | 4 | 6 | 8 | 2 | 4 | 6 | 2×4 | 3.5×7 | 4×10 | ||
| U | Plana Type / Oval Type | ● | ● | ● | ● | — | — | — | ● | ● | ● |
| B | Follis Type | — | — | ● | ● | — | — | — | — | — | — |
| UT | Tenues planae Type | — | — | — | — | ● | ● | ● | — | — | — |
| CT | Tenuis Type cum costis | — | — | — | — | ● | ● | ● | — | — | — |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone rubbe |
Hyacintho symbol is amet Donec.

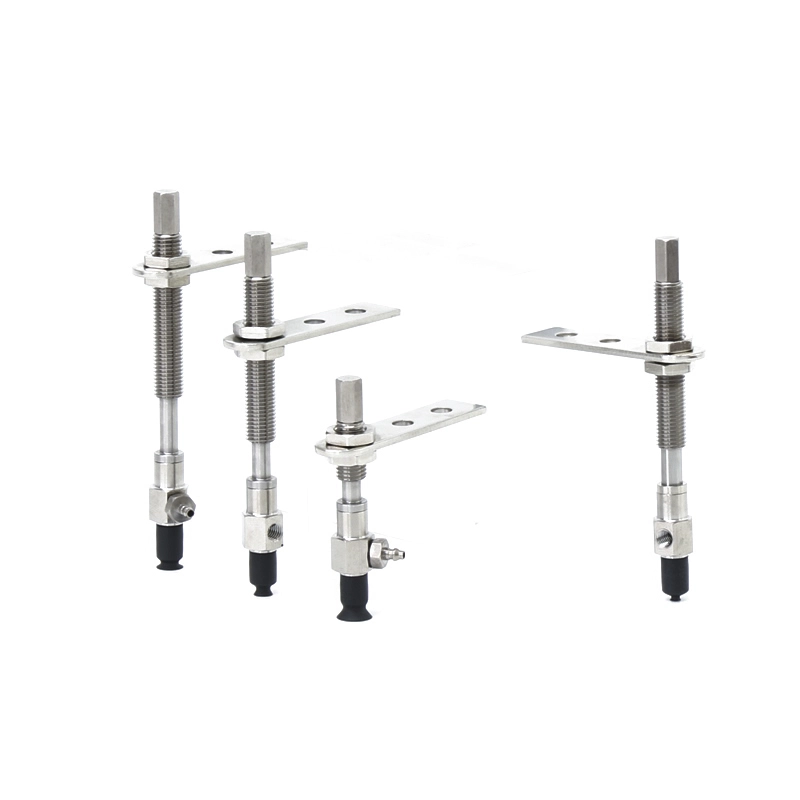

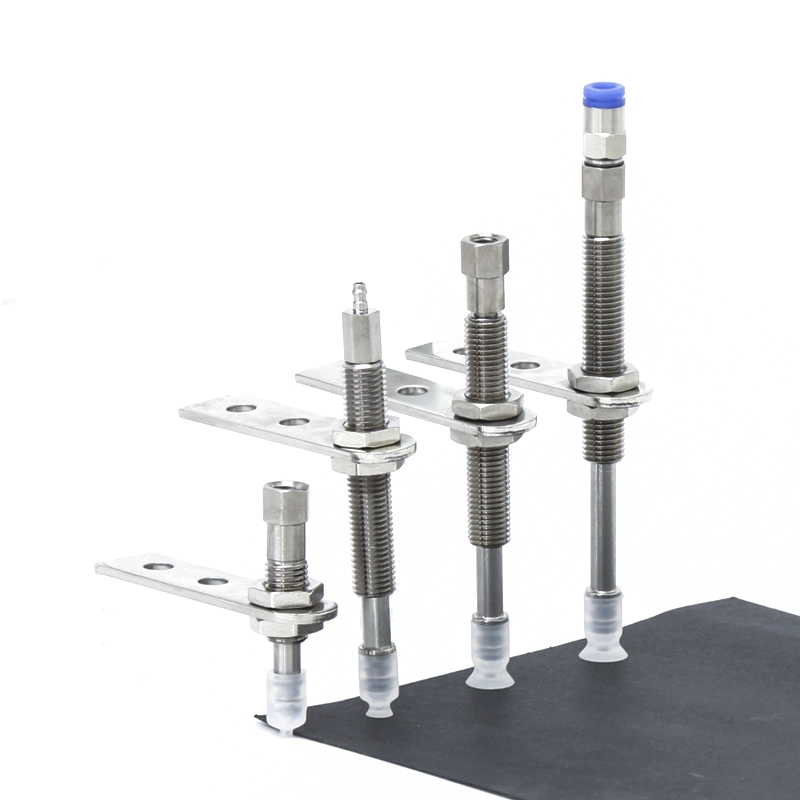

| Buffer specificationem | |
| J | Rotating |
| K | Non rotating |
| JN | Rotating (Sine laminam quiddam) |
| KN | Non rotating (Sine laminam quiddam) |
| Buffer plaga | |
| 6 | 6 mm |
| 10 | 10 mm |
| 15 | 15 mm |
| 25 | 25 mm |
| Vacuum inlet | |||
| Ma le thread | A5 | M5 x 0.8 | |
| A6 | M6 x 1.0 | ||
| Fema le thread | B3 | M3 x 0.5 | |
| B5 | M5 x 0.8 | ||
| Barb tting | U4 | Nam -4 mollis Tubing | M-5AU-4 |
| N4 | Nam -4 nylon Tubing | M-5AN-4 | |
| U6 | Nam 6 mollis tubing | M-5AU-6 | |
| N6 | Nam 6 nylon Tubing | M-5AN-6 | |
| Unius tactus tting | 04 | 4 | |
| 06 | 6 | ||
| Connection thread | |
| A8 | M8 x 1.0 |
Specifications
| Cincinno anulum / metus type | Codex diameter/dimensiones | Applicationem | ||||||||||||||||
| 2×4 | 3.5×7 | 4×10 | 2 | 4 | 6 | 8 | 10 | 13 | 16 | ø20 | 25 | 32 | 40 | 50 | ||||
| Sine Obfirmo Ring | Plana Type (U) |
|
— | — | — | ● | ● | ● | ● | — | — | — | — | — | — | — | — | Nam workpieces et superficies indeformes |
| Oval Type (U) |
|
● | ● | ● | — | — | — | — | — | — | — | — | — | — | — | — | Operis fragmenta cum limitibus in adsorptionsurface | |
| Tenues planae Type (UT) |
|
— | — | — | — | — | — | — | ● | ● | ● | — | — | — | — | — | Ad officinas mollia ut schedae graciles vel vinyl. Rugatio seu deformatio in adsorptione reduci potest. | |
| Tenues planae Type cum costis (CT) |
|
— | — | — | — | — | — | — | ● | ● | ● | — | — | — | — | — | Ad officinas mollia ut schedae graciles vel vinyl. Workpieces potest removeri facile agentes costis |
|
| Follis Type (B) |
|
— | — | — | — | — | ● | ● | — | — | — | — | — | — | — | — | Ad usum ubi non est spatium ad quiddam vel ad workpieces inclinatis superficiebus | |
| Cum Obfirmo Ring | Plana Type (U) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | Nam workpieces et superficies indeformes |
| Plana Type cum costis (C) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | Nam quae facile deformantur. Facilis ad costas workpieces tolli possunt | |
| Follis Type (B) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | Ad usum ubi non est spatium ad quiddam vel ad workpieces inclinatis superficiebus | |
| Altum Type (D) |
|
— | — | — | — | — | — | — | ● | — | ● | — | ● | — | ● | — | Ad workpieces curvas superficiebus vel sphaericis workpieces | |
Codex Materialis et Characteribus
: Parum vel non influence: Potest esse fretus conditionibus X: Non convenientem
|
Materia
Characteres
|
Symbolum | Durometer HS (±5°) |
Color of* rubber |
Operans temperatus range (°C) |
Oleum resistentia gasoline |
Oleum resistentia benzol |
Base resistentia |
Acidum resistentia |
Weatherability | Oxone resistentia |
Abrasion resistentia |
IMPERVIUS | Solvendo resistentia (Benzene, toluene) |
Applicationem |
| NBR | N | 50 | Niger | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Translatio operis generalis, tabulam corrugatam, laminam ferream, laminam ferream et cetera |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, remotionem a jactu moriendi, opus tenue, processus cibi |
| Urethane rubber | U | 50~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugata tabula, lamina ferrea, lamella Veneer |
| FKM | F | 60 | Niger | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Opus chemicum |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | Opus generale semiconductoris (Resistentiae electricitatis Static) | |
| Silicone rubbe | GS | 50~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (electricity Static) |
Mensa superior tantum notas generales de re cum rubber materialium tegit. Blue symbol is customized models.
Adumbratio applicationis partium pneumaticorum (poculi vacui suctionis) in variis campis industrialibus
I. Caput vires
II. Extraction applicationes per industriam
A. Medicina et industria medici
A.1： Core requisita:Munda et libera pollutio (FDA/GMP obsequentia), mansueta et non damnosa, et praeventionis crux-contaminatio.
A.2 Key missiones:
1. Pharmaceutical packaging: utrem medicamento / lamella pharmaceutica / infusio RAPINA sacculi (cibi gradus siliconis poculi suctionis, nulla particula fundens)
2. Medicinae fabrica conventus: instrumenta chirurgica / catheters medical / fragmenta prosthesis pertractatio (opportuna negativa pressura, deformatio tutelae)
3. Laboratorium biologicum: petri catino / tubum centrifuge / reagens card translationem (repugnans chemica, compatible sterilis)
B. Electronics et semiconductor industriae
B. 1 Caput requisita:anti-static (10⁶-10¹¹Ω), praecisio positionis (errore ≤0.01mm), scabere resistentia
B. 2 Key missiones:
1. Chip/Semiconductor: laganum pertractatio, chip packaging (ceramic/anti-static silicone poculum suctionis, pressionis negativae uniformis ne rupturam)
2. PCB/Componentes: Flexibile PCB, partium microform (resistentium 0402) superficies conseptatae (tenues siliconis/gel/microtae suctionis poculorum ne rugae/discerpendae)
3. Exhibe: tabula LCD/OLED, tange iaculis vitreum (materia alta perspicua, maculas nullas et exasperat)
C. Automobile et autocinetum partium industriam
C. 1 Core requisita:magna suctio (orbis unius suctionis ≥500N), accommodatio multi-specificationis (metal/plastic/vitri), non-lapsi
C.2 Clavis missionum:
4. Corpus fabricandi: lamina ferrea / ostium artus tractatio welding (magna diameter rubber / multi-suctus calicis instructus, textura anti-lapsi)
5. Vitrum / Interior: Windscreen installation, pellicea sedis superficies translatio (temperatus resistens silicone / spongiae suctus calicum, deformationis munimentum)
6. Partes: corpus cylindricum engine / gearbox habitationi iaculis (cincinno vacuo + mechanica, anti-lapso)
D. Cibum et industriam packaging
D.1 Caput postulatum:Cibus gradus materiales (FDA certified), facile ad mundandum, opprimendum renitentem
D.2 Clavis missionum:
1. Cibum tractatio: bona cocta / caro recens / fructus sorting
2. Packaging automation: packaging pera foramen, lobortis sterilis corona (statim eliminationem / multi-punctum suctionis, ad tenues / difficile packaging apta)
E. Logistics and warehoousing industry
R.1 Caput requisita:aptatio efficientis (multa species bonorum), pressio stabilis, anti-lapsio
R.2 Key missiones:
1. Caxton tractantem: e-commerce lobortis sorting (adjustable suctionis ordinata, pressura vacuum)
2. Tabula / roll: Lignum tabula / plastic film translatio volumen (longum habena/poculum annulale suctus, adsorption uniformis ne offset)
F. Nova energia et industriae speciales
F. 1 Nova industria (lithium altilium/pv);
1. Lithium bracteae altilium (poculum anti-staticum porosum suctionis, pulvis anti-pulvis), vitrum photovoltaicum (suctionis siliconis magnae suctionis calicis, sine scabere)
F. 2 Typographia et charta
1. Paper / re captae typis (papyrus materia absorbens, pressus negativus levis ne contagione lacerat et atramentum)
III. De core adaptationis logicae Summarium
| Workpiece characteres | Pipette adaptatio programma | Industriam missiones correspondentes |
| Tenuis / fragilis / Precision | Silicone/terrae ceramicae, pressio negativa micro, micro suctus COLLUM | Electronic semiconductores, pharmaceuticals |
| Gravis items / magna magnitudine | Purgamentum materia, magna diametri poculum suctionis, multi-suctio calicis ordinata | Autocineta, tabulae logistics |
| Salutem / praeventionis pollutio | Cibus/medicinae silicone gradus, facile ad structuram mundandam | Medicina, cibus |
| Mollis / superficies irregulares | Materia spongia, calix deformabilis suctus | Car interiora, cibus |
| Antistatic requisita | Silicone antistatic, ion ventus adiuvatur | electronic semi-ductor |
Institutionem Manual
PDF Download
Admonitio +Cautio Read ante usus）
PDF Download
