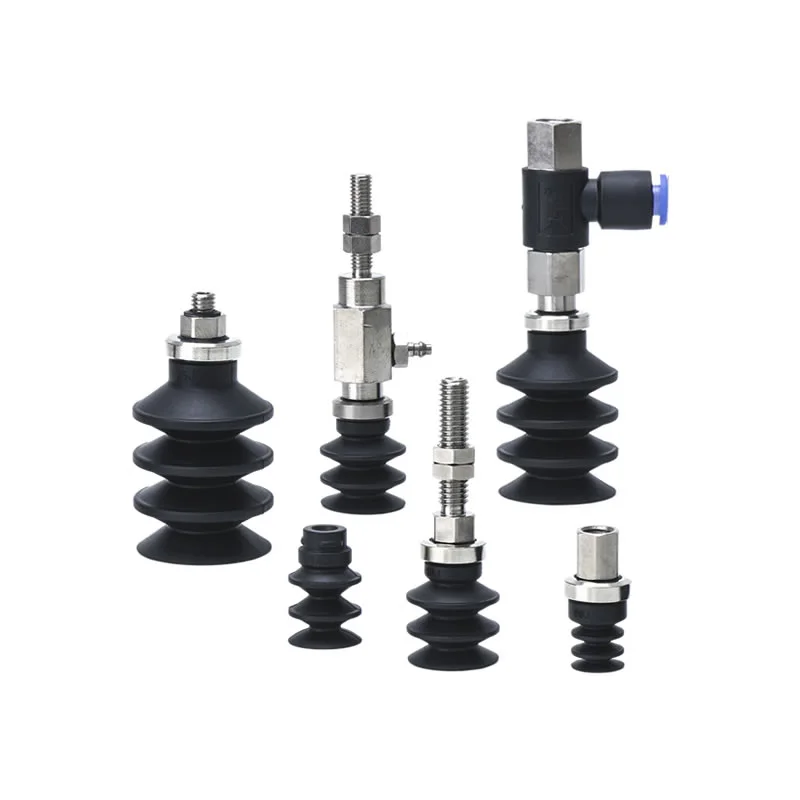

Follis cum Lok Ring Vacuum Suctionis Cucurbitulae ZP2-J

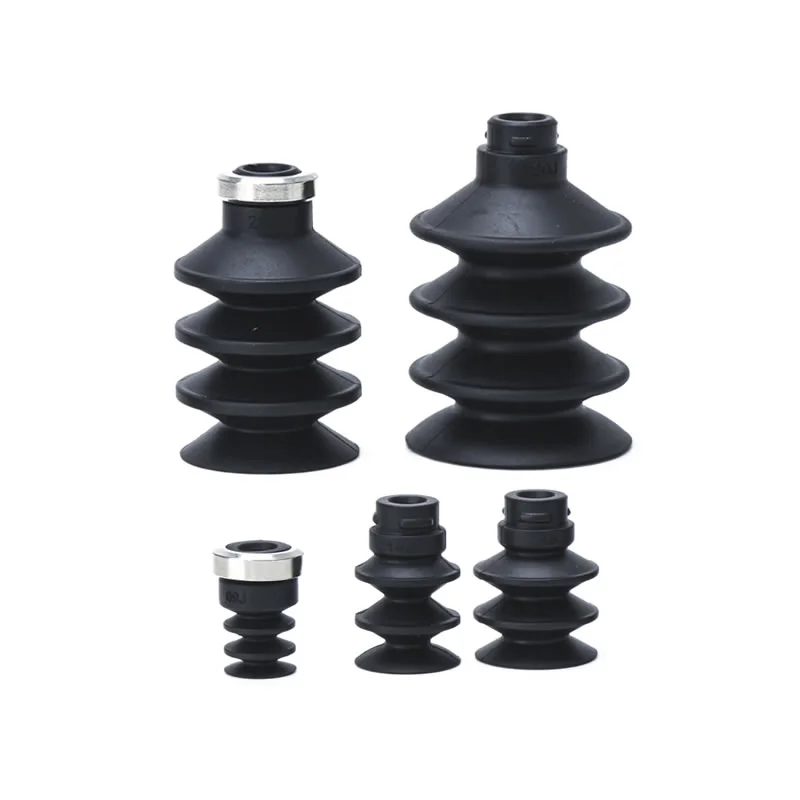

ZP2 Series Follis Pad Unit
ZP2-T Series Cum Adaptor Follis Vacuum Pads
ZP2-R Series Cum Adaptor Follis Vacuum Pads
ZP2-Y Series Cum nibh Follibus Vacuum Pads
Descriptio
Quam ad Ordinem
Formularium / Material
Applications
Resource
Folles cum Lok Ringo Vacuum Suctionis Cucurbitulae ZP2-J ordinantur ad systemata automationis, ut efficientes et tutos tenacitatem, tollentem, et tractantem operum operum, praesertim apta ad capiendas partes electronicas parvas, iniectio partes formatas, et praecisionem partium metallicarum.
Secure pertractatio:Firmum vacuum adhaesio efficit superficiebus laevibus vel modice inaequalibus.
Gratia diei et noctis Compensation:Multae folles altitudines differentias et parvas misalignments hauriunt.
Versatile Integration:Opera cum armis roboticis, vectoribus et lineis productionibus automated.
Reductio impact:Libitum buffers vibrationis minimize et custodire workpieces.
Quaenam sunt clavis commoda huius pad?

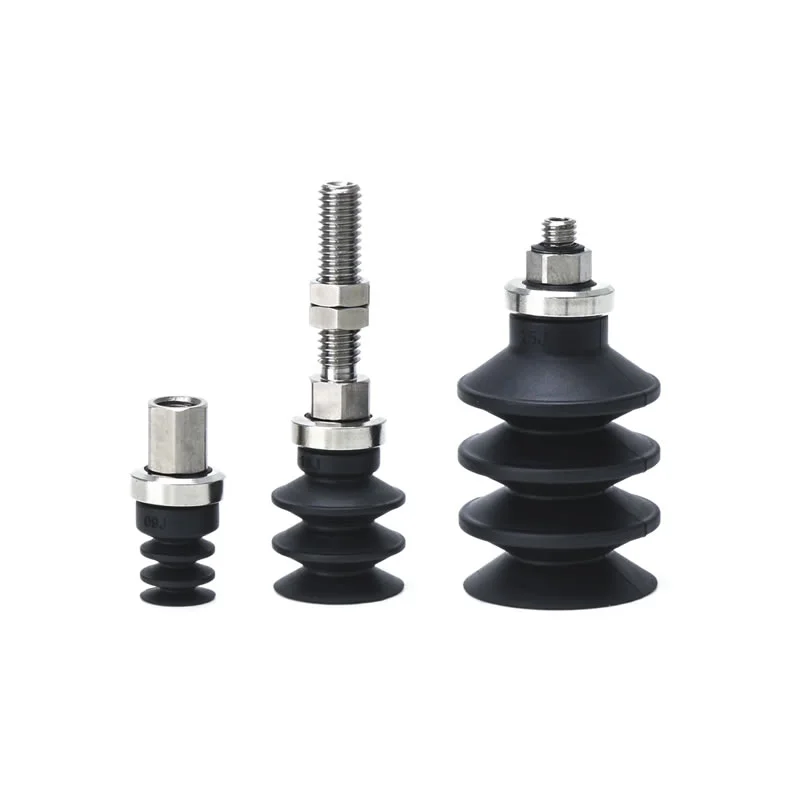

Folle cum Obfirmo Ringo Vacuum Suctionis Cucurbitulae ZP2-J ordinantur ad praecisionem, flexibilitatem, et certa automationis tractatio. Eorum compacta et apta ratio efficit ut specimen electronicorum, iniectio fingendi, et parvae industriae metallandae.
Multistage Folles
Available in 2.5-circuitum et 3.5-circuitum configurationum
2.5-circulus:φ6mm, φ10mm, φ15mm (anulus nullus cincinnus)
3.5-circuitum:φ9mm, φ14mm, φ16mm, φ25mm, φ30mm (circulo cincinno)
Altitudinem verticalis ictum praebet flexibilitatem, compensans superficiebus inaequalibus vel inclinatis
Lock Ring
3
Certa adhaesio in celeritate vel repetita res efficit
Roboticis armis stabilitatem auget et stationes tractat automated
Versatility
Particulas tractat parvas, casings plasticas irregulares et partes metallicae subtilitatis
Armis roboticis aut automated lineas cum spatio integrari potest
Optiones institutiones multiplices sustinet, incluso vacuo verticali vel laterali, sinibus
Compatibile cum adaptoribus, uncis quiddam et ferro immaculatum accessiones ad industrias speciales

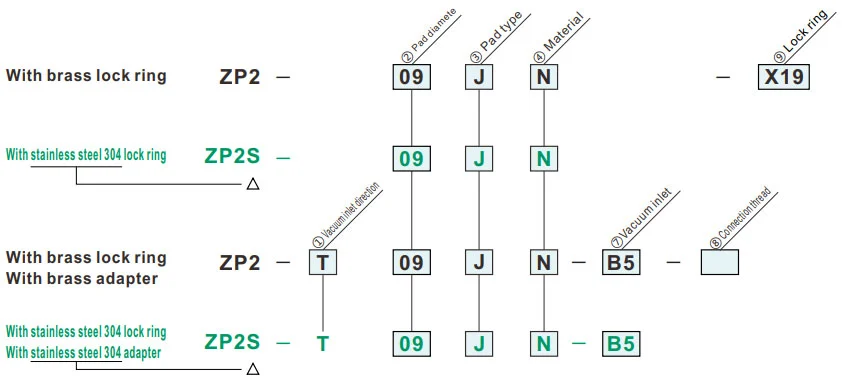

Quam ad Ordinem
- For use where there is no space for the quiddam (ver type).
- Opus fragmentum ad superficiem inclinatam adsorptionis.
- Ad ZP applicabilis series adaptator.
| Pad genus | |
| J | Follis (2.5/3.5-stage) |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone Flexilis conductive |
Green symbol is amet Donec.
| Clock anulum | |
| Nil | Cum cincinno anulum |
| X19 | Sine cincinno anulum |
| "Vacuum limbum directionem" |
⑦ ⑧
Codex diameter (mm)
|
09 | 14 | 16 | B25 | B30 | ||||||
| 9 | 14 | 16 | 25 | 30 | ||||||||
| T | Vertical |
|
Vacuuminlet | Masculum filum | AS5 | M5 x0.8 | ● | ● | ||||
| AS6 | M6 x1.0 | ● | ● | |||||||||
| AG1 | G1/8 | ● | ● | |||||||||
|
A5 | M5 x0.8 | ● | — | ||||||||
| A6 | M6 x1.0 | ● | ● | |||||||||
| A8 | M8 x1.0 | — | ● | |||||||||
|
Filum femininum | B5 | M5 x0.8 | ● | ● | |||||||
| B6 | M6 x1.0 | ● | ● | |||||||||
| B8 | M8 x1.25 | — | ● | |||||||||
| B01 | Rc1/8 | ● | ● | |||||||||
| BG01 | G1/8 | ● | ● | |||||||||
| R | lateralis |

|
Unius tactus tting | 04 | 4 | ● | ● | |||||
| 06 | 6 | ● | ● | |||||||||
| 08 | 8 | — | ● | |||||||||
| Connection thread | Masculum filum | A5 | M5 x0.8 | ● | — | |||||||
| A6 | M6 x1.0 | ● | ● | |||||||||
| A8 | M8 x1.0 | — | ● | |||||||||
| Filum femininum | B5 | M5 x0.8 | ● | ● | ||||||||
| B6 | M6 x1.0 | ● | ● | |||||||||
| B8 | M8 x1.25 | — | ● | |||||||||
| Y |

|
vacuum inlet | B5 | M5 x0.8 | ● | ● | ||||||
| Barb tting | U4 | Nam -4 mollis Tubing | ● | ● | ||||||||
| N4 | Nam -4 nylon Tubing | ● | ● | |||||||||
| U6 | Nam 6 mollis tubing | ● | ● | |||||||||
| N6 | Nam 6 nylon Tubing | ● | ● | |||||||||
| Connection thread | Masculum filum | A5 | M5 x 0.8 | ● | — | |||||||
| A6 | M6 x 1.0 | ● | ● | |||||||||
| A8 | M8 x 1.0 | — | ● | |||||||||
| Filum femininum | B5 | M5 x 0.8 | ● | ● | ||||||||
| B6 | M6 x 1.0 | ● | ● | |||||||||
| B8 | M8 x 1.25 | — | ● | |||||||||
Dimensiones (mm)
Green symbol is amet Donec.

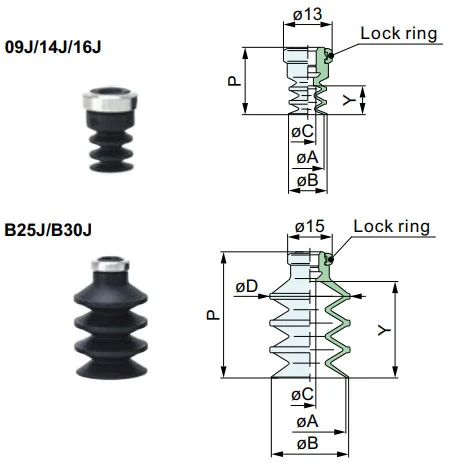

J
Follis
| Model | A | B | C | D | P | Y | Cincinno anulum | |||
|
② Pad dia. |
③ Pad type |
④ Pad Materia |
||||||||
| ZP2 | 09 | J |
N S U F GN GS |
9 | 10 | 3 | — | 18 | 7.7 | ZPL1 ZPSL1 |
| 14 | 14 | 15 | 24 | 15 | ||||||
| 16 | 16 | 17.5 | 4 | |||||||
| B25 | 25 | 26 | 4 | 27 | 42.5 | 32.5 | ZPL2 ZPSL2 |
|||
| B30 | 30 | 33 | 32 | 49 | 38 | |||||
Exemplar refer: ZP09JGN
Adscendens Dimensiones nibh
Codex applicabilis: 09J/14J/16J
Codex applicabilis: B25J/B30J

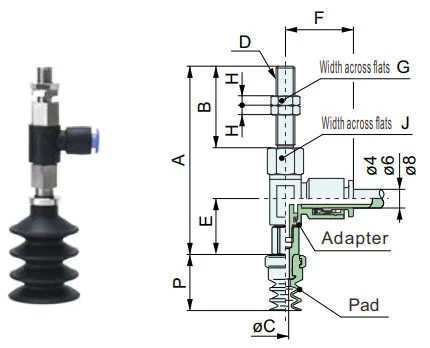

ZP2-T
Vertical
Dimensiones Per pad
| Pad dia. | 09 | 14 | 16 | 25 | 30 |
| P | 18 | 24 | 24 | 42.5 | 49 |
Dimensiones Per nibh
| Model | A | B | C | D | Accommodare | ||||||
|
① Vacuum diverticulum directionem |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑦ Vacuum diverticulum |
⑦ Vacuum diverticulum |
||||||
| ZP2 ZP2S |
T |
09 14 16 |
J |
N S U F GN GS |
AS5 | 9 | 5.5 | 8 | M5 x 0.8 | ZPT2 ZPST2 |
AS5 |
| AS6 | 10 | M6 x 1 | AS6 | ||||||||
| AG1 | 12.5 | 7.5 | 12 | G1/8 | AG1 | ||||||
| B25 B30 |
AS5 | 9 | 5.5 | 8 | M5 x 0.8 | ZPT3 ZPST3 |
AS5 | ||||
| AS6 | 10 | M6 x 1 | AS6 | ||||||||
| AG1 | 12.5 | 7.5 | 12 | G1/8 | AG1 | ||||||
Exemplar referendum: ZP2-T14JN-AS5 Adapter pro refer: ZPT2-AS5

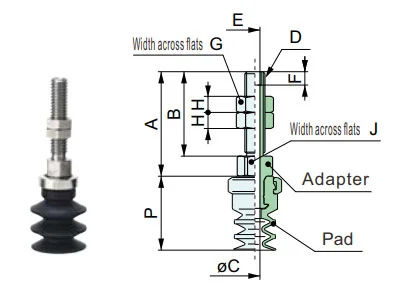

ZP2-T
Vertical
Dimensiones Per pad
| Pad dia. | 09 | 14 | 16 | 25 | 30 |
| P | 18 | 24 | 24 | 42.5 | 49 |
Dimensiones Per nibh
| Model | A | B | C | D | E | F | G | H | J | Accommodare | ||||||
|
① Vacuum diverticulum directionem |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑦ Vacuum diverticulum |
⑦ Vacuum diverticulum |
|||||||||||
| ZP2 ZP2S |
T |
09 14 16 |
J |
N S U F GN GS |
A5 | 26 | 21 | 2.5 | M5x0.8 | M3x0.5 | 3.5 | 7 | 4 | 8 | ZPT2 ZPST2 |
A5 |
| A6 | 31 | 26 | M6x1 | 8 | 3 | A6 | ||||||||||
| B25 B30 |
A6 | 31 | 26 | 2.5 | M6x1 | M3x0.5 | 3.5 | 8 | 3 | 8 | ZPT3 ZPST3 |
A6 | ||||
| A8 | 22 | 16 | 4 | M8x1 | M5x0.8 | 5 | 12 | 12 | A8 | |||||||
Exemplar referendum: ZP2-TB25JS-A6 Adapter pro refer: ZPT3-A6
ZP2-T
Vertical
Dimensiones Per pad
| Pad dia. | 09 | 14 | 16 | 25 | 30 |
| P | 18 | 24 | 24 | 42.5 | 49 |
Dimensiones Per nibh
| Model | A | B | C | D | E | Accommodare | ||||||
|
① Vacuum diverticulum directionem |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑦ Vacuum diverticulum |
⑦ Vacuum diverticulum |
|||||||
| ZP2 ZP2S |
T |
09 14 16 |
J |
N S U F GN GS |
B5 | 9 | 5 | 2.5 | M5 x0.8 | 8 | ZPT2 ZPST2 |
B5 |
| B6 | 6 | M6 x1 | B6 | |||||||||
| B01 | 11 | 7 | Rc1/8 | 12 | B01 | |||||||
| BG01 | 7.4 | G1/8 | 13 | BG01 | ||||||||
| B25 B30 |
B5 | 9 | 5 | 3.5 | M5 x0.8 | 8 | ZPT3 ZPST3 |
B5 | ||||
| B6 | 6 | M6 x1 | B6 | |||||||||
| B8 | 15 | 8 | 4.2 | M8 x1.25 | 12 | B8 | ||||||
| B01 | 7 | Rc1/8 | B01 | |||||||||
| BG01 | 7.4 | G1/8 | 13 | BG01 | ||||||||
Exemplar refer: ZPT20BGS-B01 Adapter pro refer: ZPT3-B01

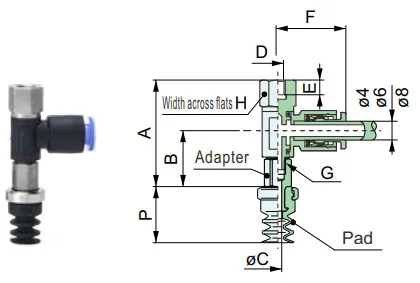

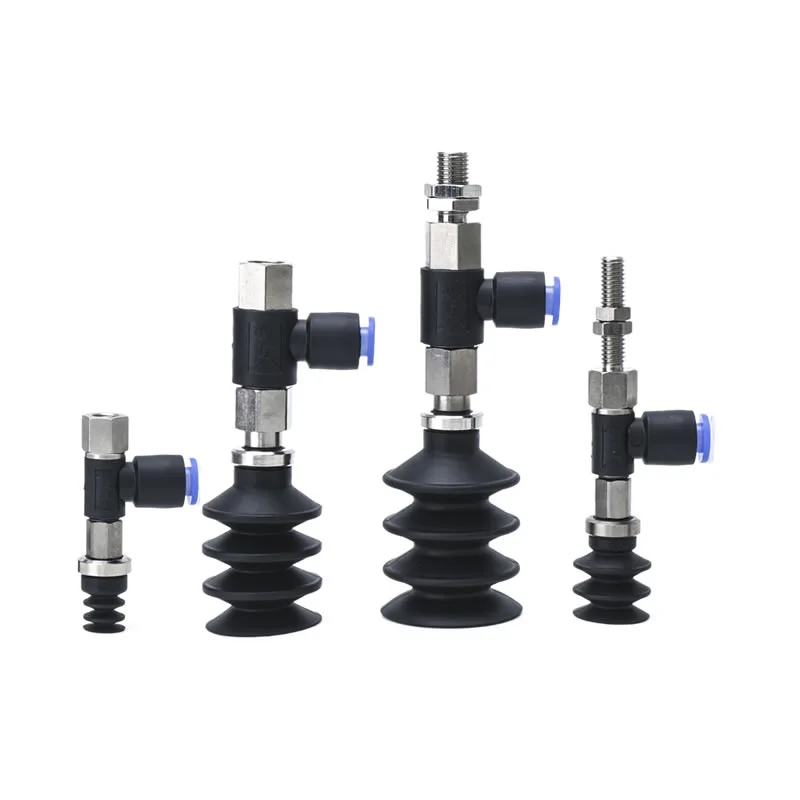

ZP2-R
lateralis
Dimensiones Per pad
| Pad dia. | 09 | 14 | 16 | 25 | 30 |
| P | 18 | 24 | 24 | 42.5 | 49 |
Dimensiones Per nibh
| Model | A | B | C | D | E | F | G | H | J | adaptor | ||||||||
|
① Vacuum diverticulum directionem |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑦ Vacuum diverticulum |
⑧ Connection filum |
⑦ Vacuum diverticulum |
⑧ Connection filum |
|||||||||||
| ZP2 | R |
09 14 16 |
J |
N S U F GN GS |
04 06 |
A5 | 55 | 21 | 2.5 | M5x0.8 | 17.9 | 04:20.6 06:21.6 |
7 | 4 | 8 | ZPR2 |
04 06 |
A5 |
| A6 | 60 | 26 | M6x1 | 8 | A6 | |||||||||||||
| B25 B30 |
04 06 08 |
A6 | 69.5 | 25.9 | 4 | M6x1 | 25.8 | 04:23.3 06:24.3 08:26.2 |
8 | 3 | 12 | ZPR3 |
04 06 08 |
A6 | ||||
| A8 | 59.5 | 15.9 | M8x1 | 24.3 | 12 | A8 | ||||||||||||
Exemplar referendum: ZP2-R16JN-04-A6 Adapter for refer: ZPR2-04-A6
ZP2-R
lateralis
Dimensiones Per pad
| Pad dia. | 09 | 14 | 16 | 25 | 30 |
| P | 18 | 24 | 24 | 42.5 | 49 |
Dimensiones Per nibh
| Model | A | B | C | D | E | F | G | H | adaptor | ||||||||
|
① Vacuum diverticulum directionem |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑦ Vacuum diverticulum |
⑧ Connection filum |
⑦ Vacuum diverticulum |
⑧ Connection filum |
||||||||||
| ZP2 | R |
09 14 16 |
J |
N S U F GN GS |
04 06 |
B5 | 34 | 17.9 | 2.5 | M5x0.8 | 5 | 04:20.6 06:21.6 |
M5x0.8 | 8 | ZPR2 |
04 06 |
B5 |
| B6 | M6x1 | 6 | B6 | ||||||||||||||
| B25 B30 |
04 06 08 |
B5 | 43.6 | 25.8 | 4 | M5x0.8 | 5 | 04:23.3 06:24.3 08:26.2 |
M8x1.25 | 12 | ZPR3 |
04 06 08 |
B5 | ||||
| B6 | M6x1 | 6 | B6 | ||||||||||||||
| B8 | M8x1.25 | 8 | B8 | ||||||||||||||
Exemplar refer: ZP2-RB25JGS-06-B8 Adapter for refer: ZPR3-06-B8

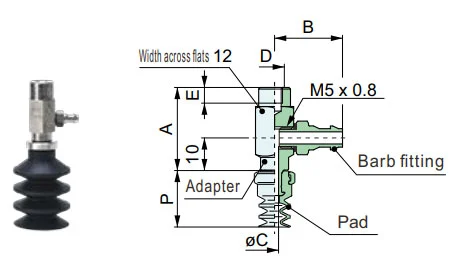

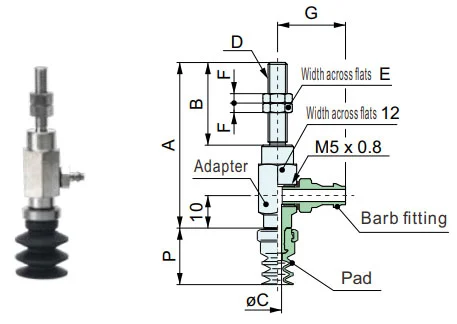

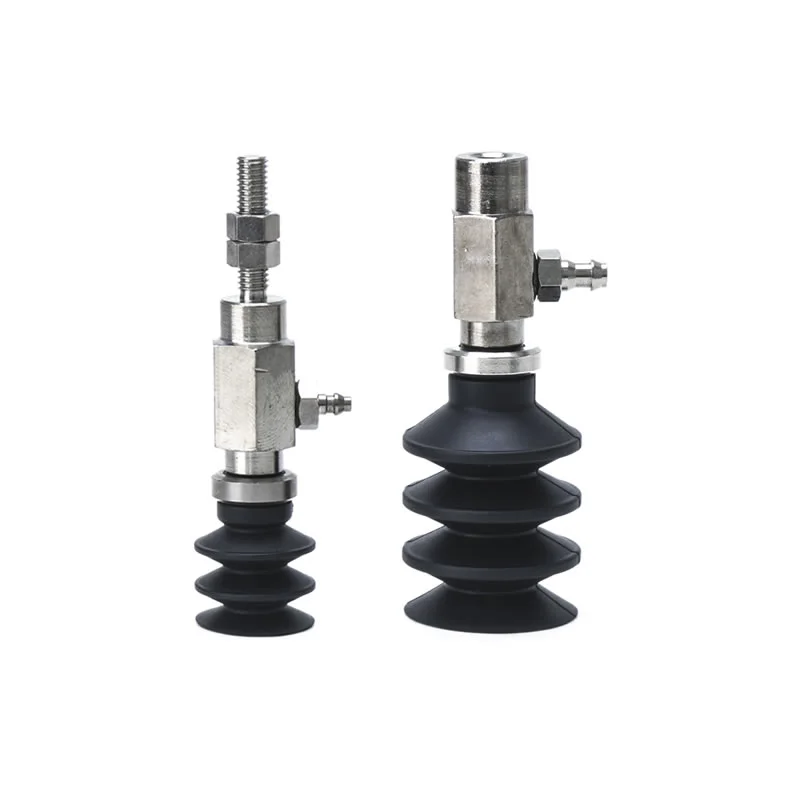

ZP2-Y
lateralis
Dimensiones Per pad
| Pad dia. | 09 | 14 | 16 | 25 | 30 |
| P | 18 | 24 | 24 | 42.5 | 49 |
Dimensiones Per nibh
| Model | A | B | C | D | E | F | G | adaptor | ||||||||
|
① Vacuum diverticulum directionis |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑦ Vacuum diverticulum |
⑧ Connection filum |
⑦ Vacuum diverticulum |
⑧ Connection filum |
|||||||||
| ZP2 | Y |
09 14 16 |
J |
N S U F GN GS |
B5 N4 U4 N6 U6 |
A5 | 47 | 21 | 2.5 | M5x0.8 | 7 | 4 | N4,U4:14 N6,U6:16.5 |
ZPY2 | B5 N4 U4 N6 U6 |
A5 |
| A6 | 52 | 26 | M6x1 | 8 | A6 | |||||||||||
| B25 B30 |
A6 | 54 | 26 | 3.5 | M6x1 | 8 | 3 | N4,U4:14 N6,U6:16.5 |
ZPY3 | A6 | ||||||
| A8 | 44 | 16 | M8x1 | 12 | A8 | |||||||||||
Exemplar referendum: ZP2-Y16JGN-U4-A5 Adapter for refer: ZPY2-U4-A5
ZP2-Y
lateralis
Dimensiones Per pad
| Pad dia. | 09 | 14 | 16 | 25 | 30 |
| P | 18 | 24 | 24 | 42.5 | 49 |
Dimensiones Per nibh
| Model | A | B | C | D | E | adaptor | ||||||||
|
① Vacuum inletdirection |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑦ Vacuum diverticulum |
⑧ Connection filum |
⑦ Vacuum diverticulum |
⑧ Connection filum |
|||||||
| ZP2 | Y |
09 14 16 |
J |
N S U F GN GS |
B5 N4 U4 N6 U6 |
B5 | 26 | N4,U4:14 N6,U6:16.5 |
2.5 | M5x0.8 | 5 | ZPY2 | B5 N4 U4 N6 U6 |
B5 |
| B6 | M6x1 | 6 | B6 | |||||||||||
| B25 B30 |
B5 | 28 | N4,U4:14 N6,U6:16.5 |
3.5 | M5x0.8 | 5 | ZPY3 | B5 | ||||||
| B6 | M6x1 | 6 | B6 | |||||||||||
| B8 | M8x1.25 | 8 | B8 | |||||||||||
Exemplar referendum: ZP2-Y16JGN-U4-B5 Adapter for refer: ZPY2-U4-B5
Codex Materialis et Characteribus
: Parum vel non influence: Potest esse fretus conditionibus X: Non convenientem
|
Materia
Characteres
|
Symbolum | Durometer HS (±5°) |
Color of* rubber |
Operans temperatus range (°C) |
Oleum resistentia gasoline |
Oleum resistentia benzol |
Base resistentia |
Acidum resistentia |
Weatherability | Oxone resistentia |
Abrasion resistentia |
IMPERVIUS | Solvendo resistentia (Benzene, toluene) |
Applicationem |
| NBR | N | 50 | Niger | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Translatio operis generalis, tabulam corrugatam, laminam ferream, laminam ferream et cetera |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, remotionem a jactu moriendi, opus tenue, processus cibi |
| Urethane rubber | U | 50~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugata tabula, lamina ferrea, lamella Veneer |
| FKM | F | 60 | Niger | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Opus chemicum |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | Opus generale semiconductoris (Resistentiae electricitatis Static) | |
| Silicone rubbe | GS | 50~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (electricity Static) |
Mensa superior tantum notas generales de re cum rubber materialium tegit. Blue symbol is customized models.
Adumbratio applicationis partium pneumaticorum (poculi vacui suctionis) in variis campis industrialibus
I. Caput vires
II. Extraction applicationes per industriam
A. Medicina et industria medici
A.1： Core requisita:Munda et libera pollutio (FDA/GMP obsequentia), mansueta et non damnosa, et praeventionis crux-contaminatio.
A.2 Key missiones:
1. Pharmaceutical packaging: utrem medicamento / lamella pharmaceutica / infusio RAPINA sacculi (cibi gradus siliconis poculi suctionis, nulla particula fundens)
2. Medicinae fabrica conventus: instrumenta chirurgica / catheters medical / fragmenta prosthesis pertractatio (opportuna negativa pressura, deformatio tutelae)
3. Laboratorium biologicum: petri catino / tubum centrifuge / reagens card translationem (repugnans chemica, compatible sterilis)
B. Electronics et semiconductor industriae
B. 1 Caput requisita:anti-static (10⁶-10¹¹Ω), praecisio positionis (errore ≤0.01mm), scabere resistentia
B. 2 Key missiones:
1. Chip/Semiconductor: laganum pertractatio, chip packaging (ceramic/anti-static silicone poculum suctionis, pressionis negativae uniformis ne rupturam)
2. PCB/Componentes: Flexibile PCB, partium microform (resistentium 0402) superficies conseptatae (tenues siliconis/gel/microtae suctionis poculorum ne rugae/discerpendae)
3. Exhibe: tabula LCD/OLED, tange iaculis vitreum (materia alta perspicua, maculas nullas et exasperat)
C. Automobile et autocinetum partium industriam
C. 1 Core requisita:magna suctio (orbis unius suctionis ≥500N), accommodatio multi-specificationis (metal/plastic/vitri), non-lapsi
C.2 Clavis missionum:
4. Corpus fabricandi: lamina ferrea / ostium artus tractatio welding (magna diameter rubber / multi-suctus calicis instructus, textura anti-lapsi)
5. Vitrum / Interior: Windscreen installation, pellicea sedis superficies translatio (temperatus resistens silicone / spongiae suctus calicum, deformationis munimentum)
6. Partes: corpus cylindricum engine / gearbox habitationi iaculis (cincinno vacuo + mechanica, anti-lapso)
D. Cibum et industriam packaging
D.1 Caput postulatum:Cibus gradus materiales (FDA certified), facile ad mundandum, opprimendum renitentem
D.2 Clavis missionum:
1. Cibum tractatio: bona cocta / caro recens / fructus sorting
2. Packaging automation: packaging pera foramen, lobortis sterilis corona (statim eliminationem / multi-punctum suctionis, ad tenues / difficile packaging apta)
E. Logistics and warehoousing industry
R.1 Caput requisita:aptatio efficientis (multa species bonorum), pressio stabilis, anti-lapsio
R.2 Key missiones:
1. Caxton tractantem: e-commerce lobortis sorting (adjustable suctionis ordinata, pressura vacuum)
2. Tabula / roll: Lignum tabula / plastic film translatio volumen (longum habena/poculum annulale suctus, adsorption uniformis ne offset)
F. Nova energia et industriae speciales
F. 1 Nova industria (lithium altilium/pv);
1. Lithium bracteae altilium (poculum anti-staticum porosum suctionis, pulvis anti-pulvis), vitrum photovoltaicum (suctionis siliconis magnae suctionis calicis, sine scabere)
F. 2 Typographia et charta
1. Paper / re captae typis (papyrus materia absorbens, pressus negativus levis ne contagione lacerat et atramentum)
III. De core adaptationis logicae Summarium
| Workpiece characteres | Pipette adaptatio programma | Industriam missiones correspondentes |
| Tenuis / fragilis / Precision | Silicone/terrae ceramicae, pressio negativa micro, micro suctus COLLUM | Electronic semiconductores, pharmaceuticals |
| Gravis items / magna magnitudine | Purgamentum materia, magna diametri poculum suctionis, multi-suctio calicis ordinata | Autocineta, tabulae logistics |
| Salutem / praeventionis pollutio | Cibus/medicinae silicone gradus, facile ad structuram mundandam | Medicina, cibus |
| Mollis / superficies irregulares | Materia spongia, calix deformabilis suctus | Car interiora, cibus |
| Antistatic requisita | Silicone antistatic, ion ventus adiuvatur | electronic semi-ductor |
Institutionem Manual
PDF Download
Admonitio +Cautio Read ante usus）
PDF Download
Hot Tags: Follis cum Obfirmo Ringo Vacuum Suctionis Cucurbitulae ZP2-J, Sinarum, Manufacturer, Supple, Factory
Mitte Inquisitionem
Contactus info
-
Oratio
Xiaruan Villa Baishi oppidum Yueqing urbs Zhejiang provinciae China
-
Tel
-
E-mail
Percontationes de poculis vacui suctionis, generantibus vacuum, accessoriis pneuma- maticis vel indice pretioso, quaeso nobis electronicam tuam relinque et intra 24 horas erimus continuaturi.
