Vacuum suctus nucleus solutio est "captiva flexilis" in automatione industriae cum quattuor nucleis commoda: comprehensio non damnosa, aptabilitas ad officinas multi-materia/irregularis, munda et environmental tutela, ac flexibilis operatio. Accommodari potest ad varias industrias notas of officinarum (graciles/crass, exquisitas/crassas, sanitate/vexillas).

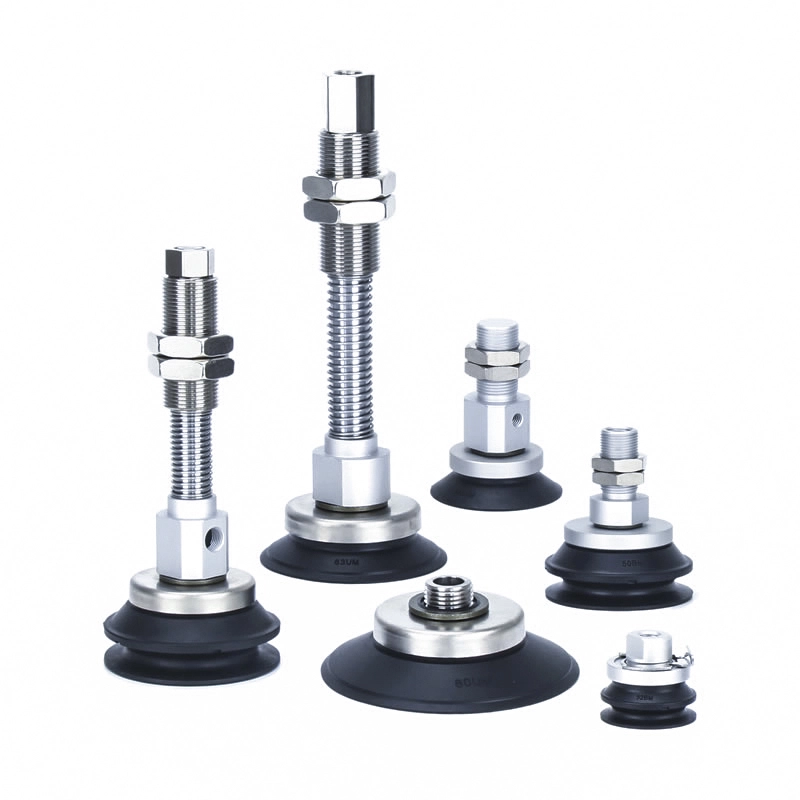

High Rigidity Vacuum Suction Cucurbitulae ZP3E
High Rigidity Vacuum Suction Cucurbitulae ZP3E ordinantur ad gravia onera pertractatio magnarum aut rariorum operum. sulcatae superficies signandi ac tabs structuram efficiendi, firmam adhaesionem in inaequalibus superficiebus efficiunt. Specimen pro vitreis, metallis schedae, et packaging, tenacitatem stabilium, tractationem non notans, et certae operationis in systematis automationum altae fluunt certae tradent. Late etiam usus est in lineis productivis trans industriis inclusis electronicis fabricandis, automotivis conventus, et logisticis voluptua.
Click et Satus Electio
Redi ad Product Information
High Rigidity Vacuum Suction Cucurbitulae ZP3E

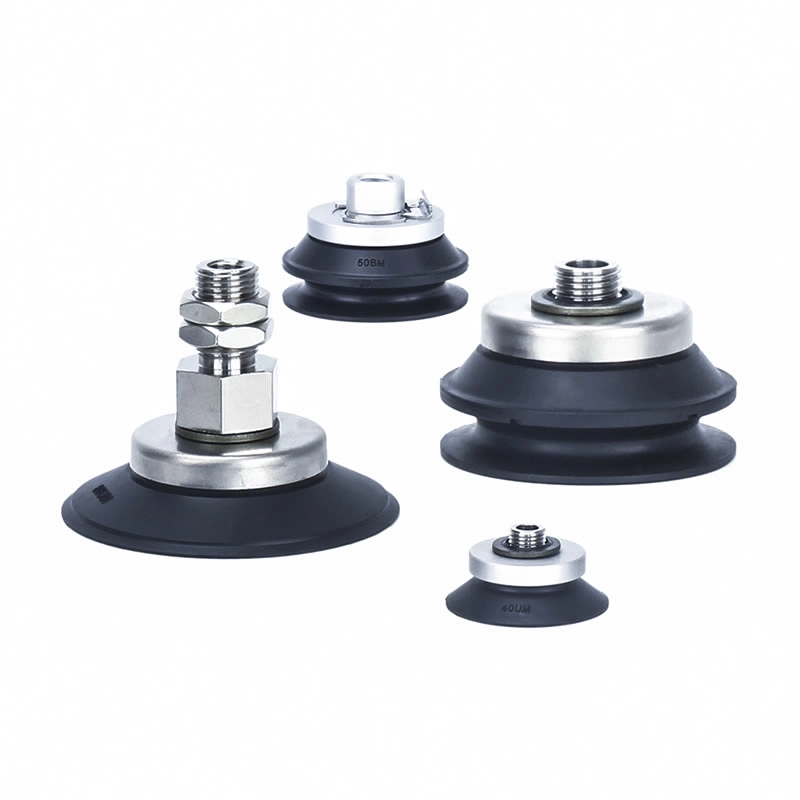

ZP3E Series High Rigidity Vacuum Pad Unit

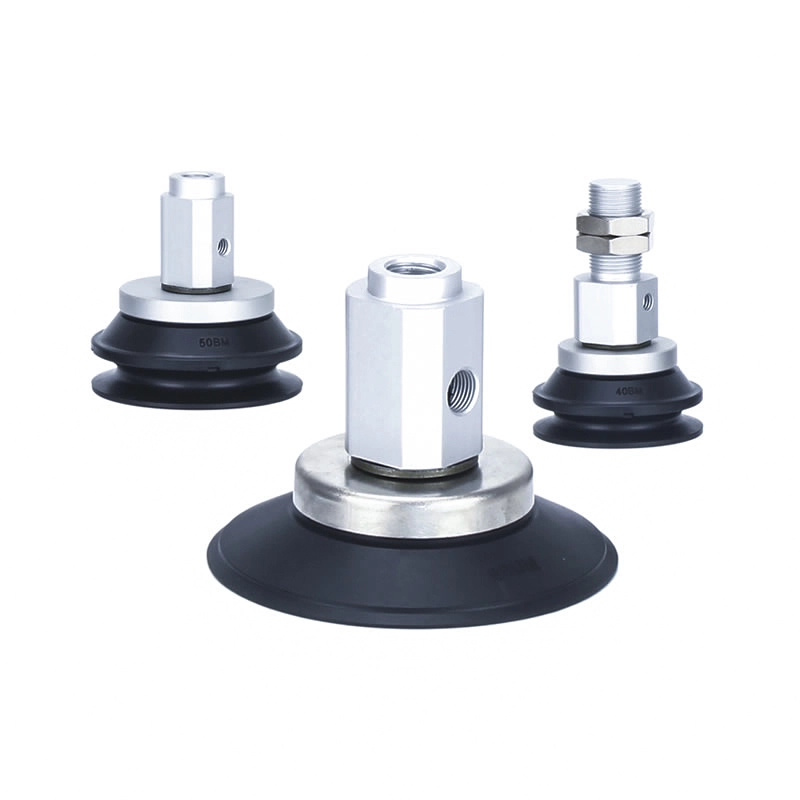

ZP3E-T Series Cum Adapter High Rigidity Vacuum Pads
ZP3E-T Series Cum Buffer High Rigidity Vacuum Pads
ZP3E-Y Series Cum Adapter High Rigidity Vacuum Pads
ZP3E-Y Series In Buffer High Rigidity Vacuum Pads
Descriptio
Quam ad Ordinem
Formularium / Material
Applications
Resource
The High Rigidity Vacuum Suction Cucurbitulae ZP3E sunt scyphi vacui industriae-gradus ad grave pondus destinatum, magna area workpiece tractatio. Apta sunt applicationes ad adhaesionem validam, altam aeribilitatem et stabilem tenacitatem, etiam in superficie inaequali vel leviter permeabilis.
Key Features
Gravis-Officium tractantem Capability
High Rigidity Vacuum Suctionis Cucurbitulae ZP3E specialiter destinatur ad officinas magnas et graves, ut sunt cardboard, tabulae vitreae, et laminae metallicae.
Rhoncus diam:32mm ad 125mm
Praesto in unius iacuit et duplex iacuit configurationes
Consectetur euismod signantes
Sulcata suctionis superficies tenaci stabilitatem meliorem praestat et vacuum conservat
Accordion informibus signavit structuram aptat ad inflexas vel inaequales superficies
Curat certa adhaesio etiam pro curvis vel irregularibus workpieces
Optimized pro Porous Materials
Apta cardboard, charta, aliaque permeabilis materia
Effectus operatur cum summus fluxus systems vacuum
Consistere non obstante exiguo aere ultrices suctu consistent
Flexibile installation
Plures ascendens optiones pro diversis automation setups
Compatibile cum armis roboticis et lineis productionis automated
Applications
Industriae Automation Equipment
Arca chartacea machinis formandis:Vectigalia situque cardboard iaculis
Systema packaging:Stack et movere gravibus cartons et materiae
Robotic automation:Firmum tenacem et ieiunium remissionis in ecclesia lineae
Workpiece Tractantem
Processus vitrei:Non notati pertractatio ex levibus, gravibus tabulatis vitreis
Metallum & laminae plasticae:laminae ferreae, aluminium laminae et tabulae plasticae crassae
Logistics & horreis:Automated positis gravibus products
Commodo euismod
Summus rigiditas structuram stabilitatem in gravi onere tractando efficit.
Consilium non notans superficies sensitivas - ut vitreum - ab noxa protegit.
Robustum retentionis vacuum facultatem efficit ut certa operatio in ambitibus exigendis.
High Rigidity Vacuum Suctionis Cucurbitulae ZP3E usui aptum est in electronicis, automotivis, logisticis et industriis fabricandis.
Quid elige China-Facta ZP3E Vacuum Cucurbitulae
Pretium efficax productio cum certa effectus
Perfecta technologia utens summus qualitas silicone et vacuum signationem provectus
Wide productum range in occursum diversis necessitatibus industriae
Stabilis copia catenae cursus ieiunium et constantem traditionem

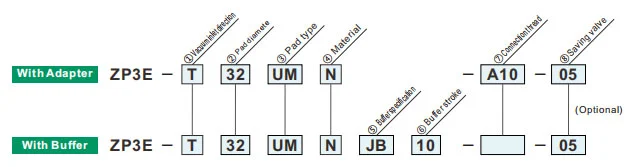

Quam ad Ordinem
| Pad diameter (mm) | |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 80 | ø80 |
| 100 | 100 |
| 125 | 125 |

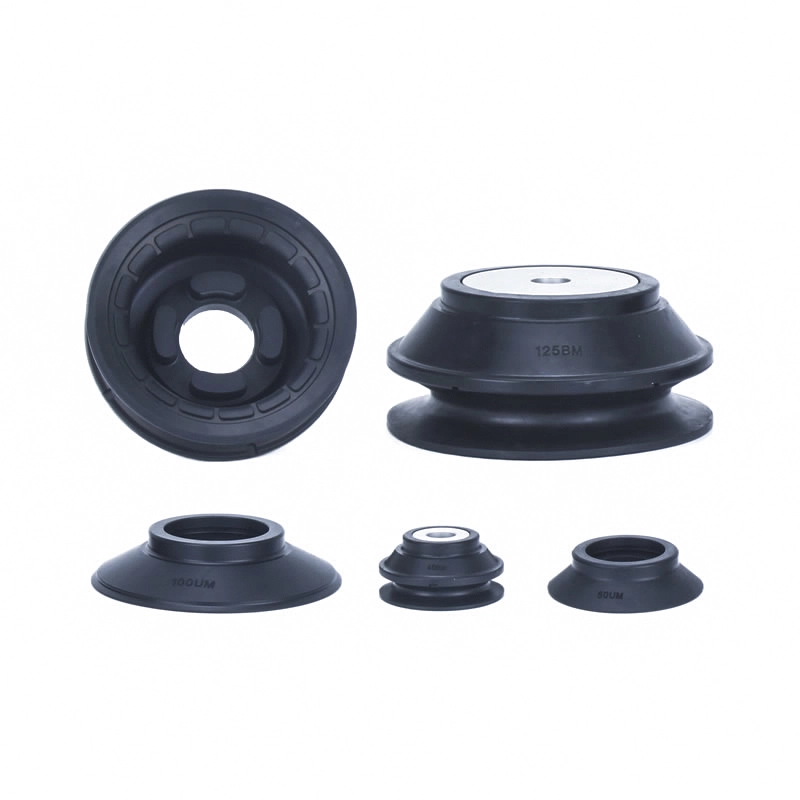

| Pad genus | |
| UM | Plana genus cum fossa |
| BM | Bellows type with ribs and groove |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone Flexilis conductive |
Green symbol is amet Donec.
| Plate | |
| Nil | Sine laminam |
| P | Cum laminam |
|
Model
Pad diameter (mm)
|
Plana generis sulcus (UM) | Follis typus cum costis et sulcus (BM) | ||||||||||||
| 32 | 40 | 50 | 63 | 80 | 100 | 125 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | |
| ZP3EA-P1 | ● | ● | — | — | — | — | — | ● | ● | — | — | — | — | — |
| ZP3EA-P2 | — | — | ● | — | — | — | — | — | — | ● | — | — | — | — |
| ZP3EA-P3 | — | — | — | ● | ● | — | — | — | — | — | ● | — | — | — |
| ZP3EA-P4 | — | — | — | — | — | ● | — | — | — | — | — | ● | — | — |
| ZP3EA-P5 | — | — | — | — | — | — | ● | — | — | — | — | — | ● | — |
| ZP3EA-P6 | — | — | — | — | — | — | — | — | — | — | — | — | — | ● |
| "Vacuum limbum directionem" | |
| T | Vertical |
| Y | lateralis |
| Pad diameter (mm) | |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 80 | ø80 |
| 100 | 100 |
| 125 | 125 |
| Pad genus | |
| UM | Plana genus cum fossa |
| BM | Bellows type with ribs and groove |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone Flexilis conductive |
Green symbol is amet Donec.
| vacuum inlet | ZP3E-T/Vertical | ZP3E-Y/Lateral | ||||
| 32~ø50 | 63~ø125 | 32~ø50 | 63~ø125 | |||
| Male Thread | A10 | M10 x1 | ● | — | — | — |
| AG1 | G1/8 | ● | — | — | — | |
| A16 | M16 x1.5 | — | ● | — | — | |
| AL14 | M14 x1 | ● | — | ● | — | |
| AL16 | M16 x1.5 | — | ● | — | ● | |
| Feminam sequelam | B8 | M8 x1.25 | ● | — | ● | — |
| B10 | M10 x1.5 | ● | — | — | — | |
| B12 | M12 x1.75 | — | ● | — | ● | |
| B18 | M18 x1.5 | — | ● | — | — | |

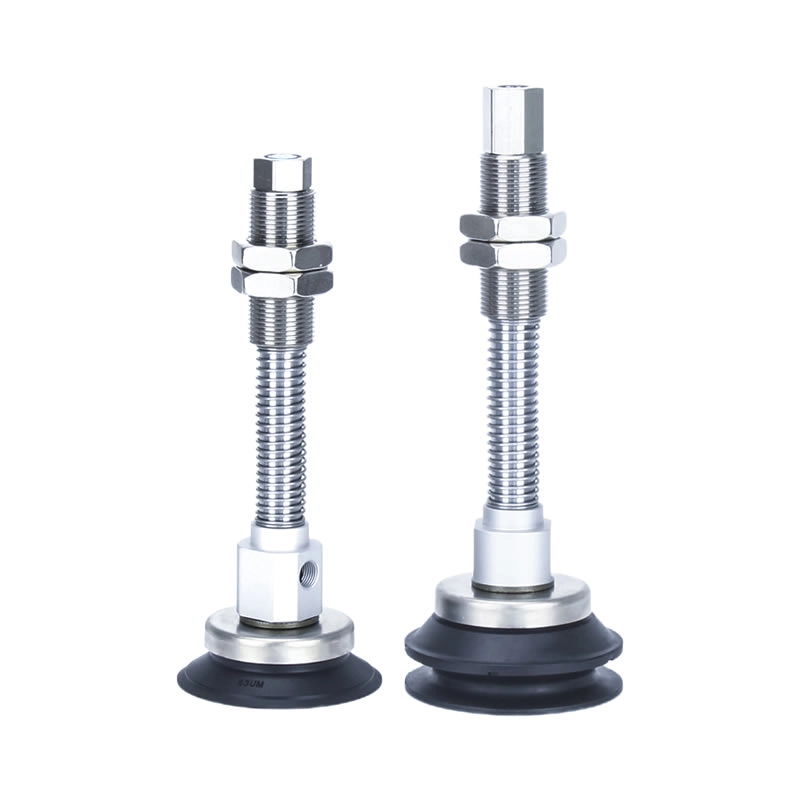

| Buffer specification | |
| JB | Rotating (Brass, With Bushing) |
| JF | Rotating (Ferro, Bushing) |
| KB | Non rotating (Brass, Cum Bushing) |
| vacuum inlet | A14 | Nil | A18 | Nil | |
| M14x1 | M18x1.5 | M18x1.5 | M22x1.5 | ||
| Buffer plaga | 32~ø50 | 32~ø50 | 63~ø80 | 63~ø125 | |
| 10 | 10mm | ● | ● | ● | ● |
| 20 | 20mm | ● | — | — | — |
| 25 | 25mm | — | ● | ● | ● |
| 30 | 30mm | ● | ● | ● | ● |
| 50 | 50mm | — | ● | ● | ● |
| 75 | 75mm | — | ● | ● | ● |
| 100 | 100mm | — | — | — | ● |
| Salvo valvae fixa orificium | |||
| magnitudine (mm) |
Codex diam | ||
| 32~ø50 | 63~ø125 | ||
| 05 | 0.5 | ● | — |
| 07 | 0.7 | ● | — |
| 10 | 1.0 | ● | — |
| 01 | Reference SVKS |
— | ● |
| 02 | — | ● | |
| 03 | — | ● | |
| 04 | — | ● | |
| 05 | — | ● | |
| 06 | — | ● | |
| 07 | — | ● | |
| 08 | — | ● | |
Vere reactiveforce
| Connection filum | Constringens torque±5% [N·m] | Plaga quiddam (mm) | Vis reciprocus [N] | ||
| Aes, Cum Bushing (JB/KB) | Ferro, Cum Bushing (JF) | In 0 plaga | In plena plaga | ||
| M14x1 | 6.5 | — | 10 | 3 | 4.5 |
| 20 | 5 | ||||
| 30 | 5.2 | ||||
| M18x1.5 | 30 | 50 | 10 | 5 | 6.5 |
| 25 | 6.9 | 11.8 | |||
| 30 | 5 | 8.5 | |||
| 50,75 | 6.9 | 11.8 | |||
| M22x1.5 | 45 | 75 | 10 | 10 | 11.5 |
| 25 | 15 | ||||
| 30 | 13.5 | ||||
| 50,75,100 | 15 | ||||
Codex Materialis et Characteribus
: Parum vel non influence: Potest esse fretus conditionibus X: Non convenientem
|
Materia
Characteres
|
Symbolum | Durometer HS (±5°) |
Color of* rubber |
Operans temperatus range (°C) |
Oleum resistentia gasoline |
Oleum resistentia benzol |
Base resistentia |
Acidum resistentia |
Weatherability | Oxone resistentia |
Abrasion resistentia |
IMPERVIUS | Solvendo resistentia (Benzene, toluene) |
Applicationem |
| NBR | N | 50 | Niger | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Translatio operis generalis, tabulam corrugatam, laminam ferream, laminam ferream et cetera |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, remotionem a jactu moriendi, opus tenue, processus cibi |
| Urethane rubber | U | 50~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugata tabula, lamina ferrea, lamella Veneer |
| FKM | F | 60 | Niger | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Opus chemicum |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | Opus generale semiconductoris (Resistentiae electricitatis Static) | |
| Silicone rubbe | GS | 50~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (electricity Static) |
Mensa superior tantum notas generales de re cum rubber materialium tegit. Blue symbol is customized models.
Adumbratio applicationis partium pneumaticorum (poculi vacui suctionis) in variis campis industrialibus
I. Caput vires
II. Extraction applicationes per industriam
A. Medicina et industria medici
A.1： Core requisita:Munda et libera pollutio (FDA/GMP obsequentia), mansueta et non damnosa, et praeventionis crux-contaminatio.
A.2 Key missiones:
1. Pharmaceutical packaging: utrem medicamento / lamella pharmaceutica / infusio RAPINA sacculi (cibi gradus siliconis poculi suctionis, nulla particula fundens)
2. Medicinae fabrica conventus: instrumenta chirurgica / catheters medical / fragmenta prosthesis pertractatio (opportuna negativa pressura, deformatio tutelae)
3. Laboratorium biologicum: petri catino / tubum centrifuge / reagens card translationem (repugnans chemica, compatible sterilis)
B. Electronics et semiconductor industriae
B. 1 Caput requisita:anti-static (10⁶-10¹¹Ω), praecisio positionis (errore ≤0.01mm), scabere resistentia
B. 2 Key missiones:
1. Chip/Semiconductor: laganum pertractatio, chip packaging (ceramic/anti-static silicone poculum suctionis, pressionis negativae uniformis ne rupturam)
2. PCB/Componentes: Flexibile PCB, partium microform (resistentium 0402) superficies conseptatae (tenues siliconis/gel/microtae suctionis poculorum ne rugae/discerpendae)
3. Exhibe: tabula LCD/OLED, tange iaculis vitreum (materia alta perspicua, maculas nullas et exasperat)
C. Automobile et autocinetum partium industriam
C. 1 Core requisita:magna suctio (orbis unius suctionis ≥500N), accommodatio multi-specificationis (metal/plastic/vitri), non-lapsi
C.2 Clavis missionum:
4. Corpus fabricandi: lamina ferrea / ostium artus tractatio welding (magna diameter rubber / multi-suctus calicis instructus, textura anti-lapsi)
5. Vitrum / Interior: Windscreen installation, pellicea sedis superficies translatio (temperatus resistens silicone / spongiae suctus calicum, deformationis munimentum)
6. Partes: corpus cylindricum engine / gearbox habitationi iaculis (cincinno vacuo + mechanica, anti-lapso)
D. Cibum et industriam packaging
D.1 Caput postulatum:Cibus gradus materiales (FDA certified), facile ad mundandum, opprimendum renitentem
D.2 Clavis missionum:
1. Cibum tractatio: bona cocta / caro recens / fructus sorting
2. Packaging automation: packaging pera foramen, lobortis sterilis corona (statim eliminationem / multi-punctum suctionis, ad tenues / difficile packaging apta)
E. Logistics and warehoousing industry
R.1 Caput requisita:aptatio efficientis (multa species bonorum), pressio stabilis, anti-lapsio
R.2 Key missiones:
1. Caxton tractantem: e-commerce lobortis sorting (adjustable suctionis ordinata, pressura vacuum)
2. Tabula / roll: Lignum tabula / plastic film translatio volumen (longum habena/poculum annulale suctus, adsorption uniformis ne offset)
F. Nova energia et industriae speciales
F. 1 Nova industria (lithium altilium/pv);
1. Lithium bracteae altilium (poculum anti-staticum porosum suctionis, pulvis anti-pulvis), vitrum photovoltaicum (suctionis siliconis magnae suctionis calicis, sine scabere)
F. 2 Typographia et charta
1. Paper / re captae typis (papyrus materia absorbens, pressus negativus levis ne contagione lacerat et atramentum)
III. De core adaptationis logicae Summarium
| Workpiece characteres | Pipette adaptatio programma | Industriam missiones correspondentes |
| Tenuis / fragilis / Precision | Silicone/terrae ceramicae, pressio negativa micro, micro suctus COLLUM | Electronic semiconductores, pharmaceuticals |
| Gravis items / magna magnitudine | Purgamentum materia, magna diametri poculum suctionis, multi-suctio calicis ordinata | Autocineta, tabulae logistics |
| Salutem / praeventionis pollutio | Cibus/medicinae silicone gradus, facile ad structuram mundandam | Medicina, cibus |
| Mollis / superficies irregulares | Materia spongia, calix deformabilis suctus | Car interiora, cibus |
| Antistatic requisita | Silicone antistatic, ion ventus adiuvatur | electronic semi-ductor |
Institutionem Manual
PDF Download
Admonitio +Cautio Read ante usus）
PDF Download
