Foedus Vacuum Suctionis Cucurbitulae ZP3
Commaelec officinas amplissimas inventarium ad navem paratam conservat et optimas qualitates in Flexilis, siliconibus et materiis specialibus praebet, inter variantes anti-staticas. Foedus Vacuum Suctionis Cucurbitulae ZP3 lineamenta diametri circumscriptiones longitudinum 1.5 mm longarum ad 16 mm; hae partes parvae ad electronicarum industriam specialiter adamussim machinantur.
Click et Satus Electio
Redi ad Product Information
Foedus Vacuum Suctionis Cucurbitulae ZP3

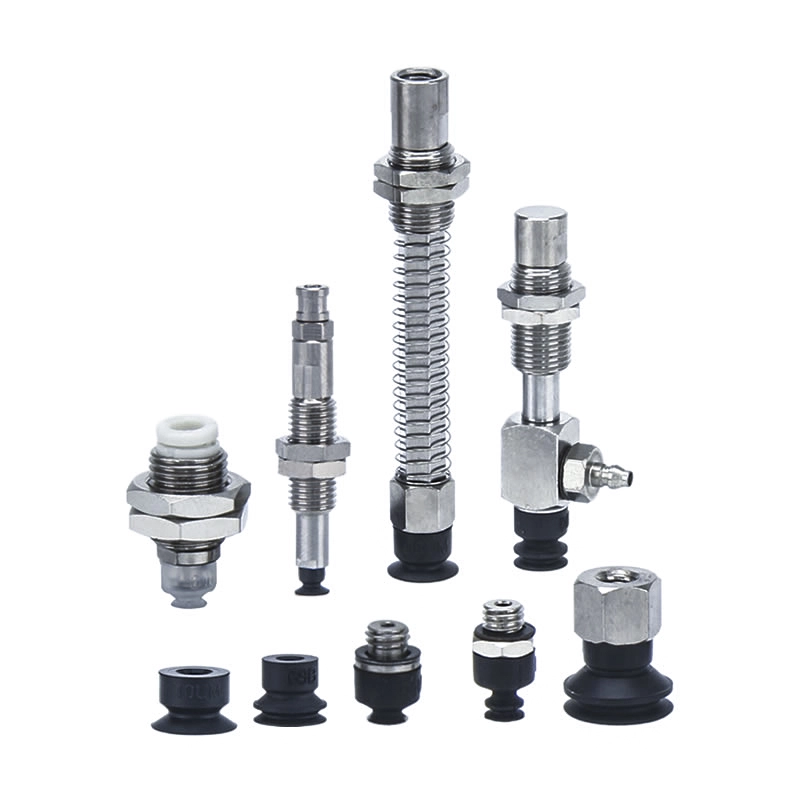

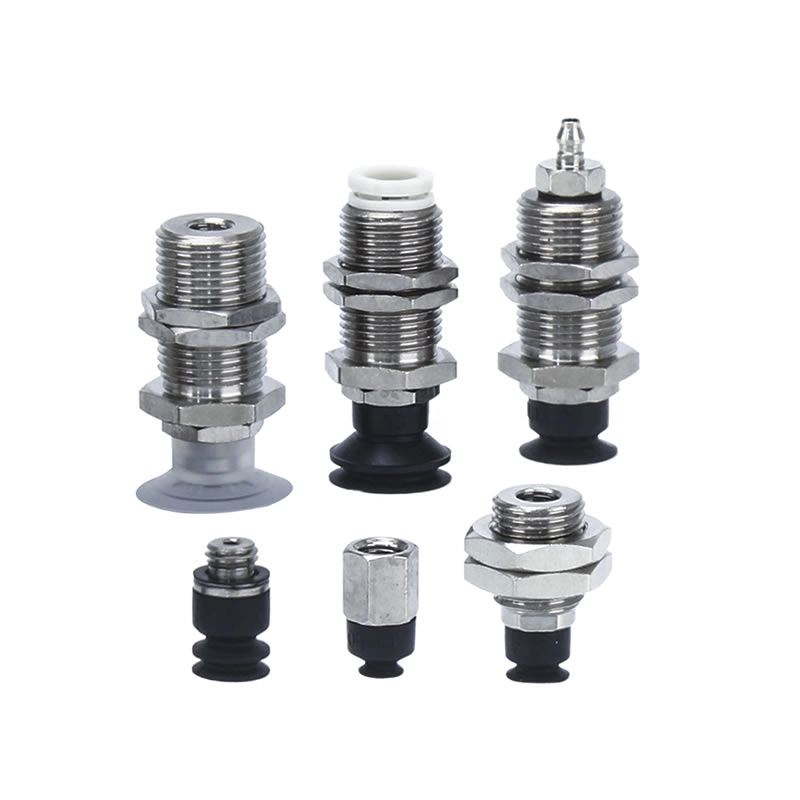

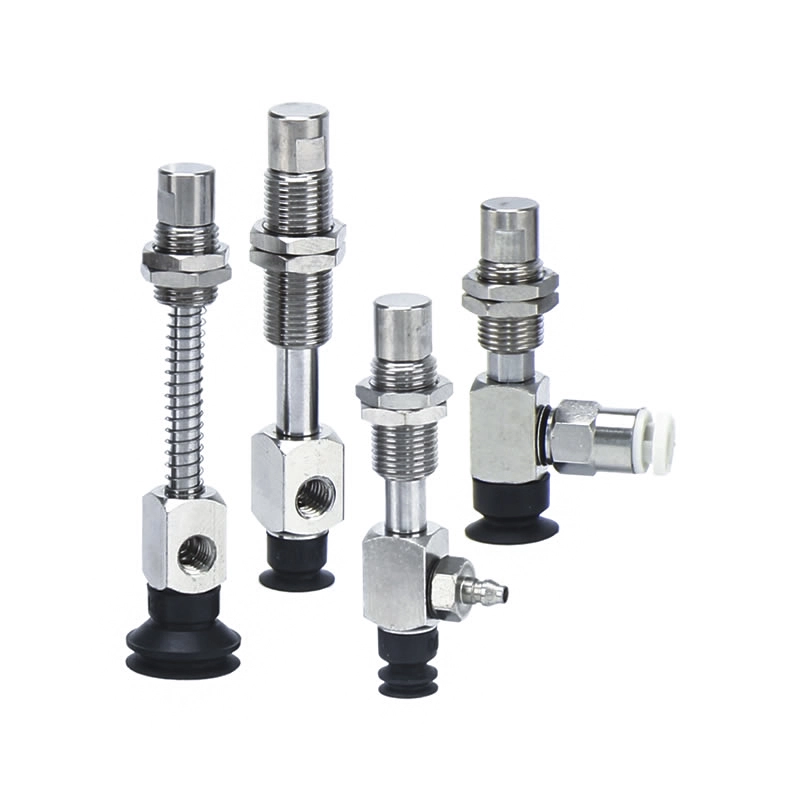

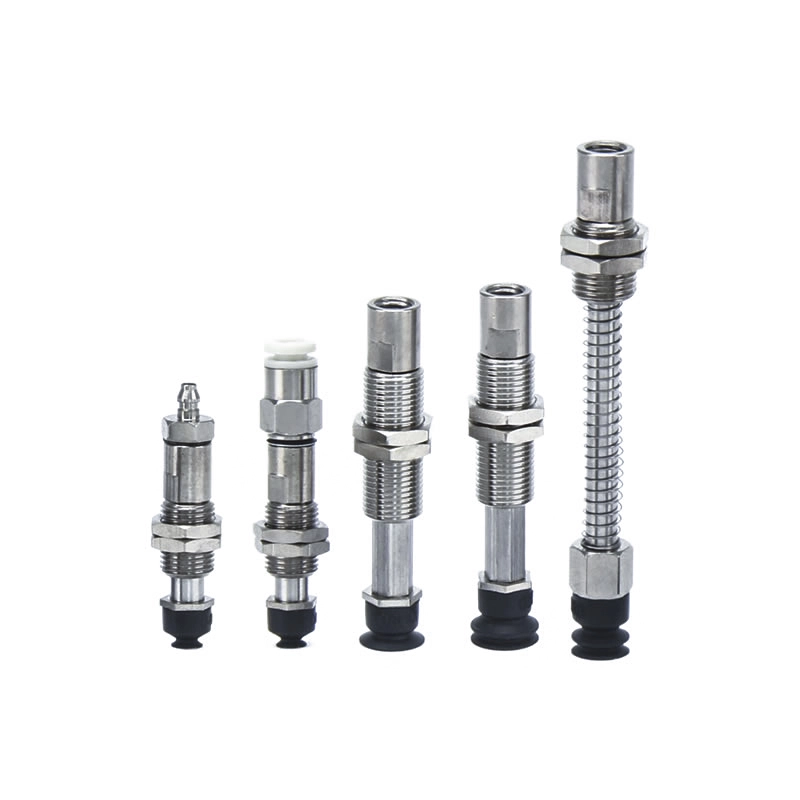

ZP3 Series Compact Vacuum Pad Unit
ZP3-T Series Cum Adaptore Foederis Vacuum Pads
ZP3-T Series Cum Buffer Compact Vacuum Pads
ZP3-Y Series Cum Adapter Foedus Vacuum Pads
ZP3-Y Series Cum Buffer Compact Vacuum Pads
Descriptio
Quam ad Ordinem
Formularium / Material
Applications
Resource
Foedus Vacuum Suctionis Cucurbitulae ZP3 specialiter destinantur ad industriam electronicarum, quae accuratam, certam tenacitatem pro parvis vel subtilibus componunt. Cum diametris ab 1.5mm ad 16mm, compagem in productionem automatam et systemata robotica integrant.
FAQ
Quid Applications Typicae?

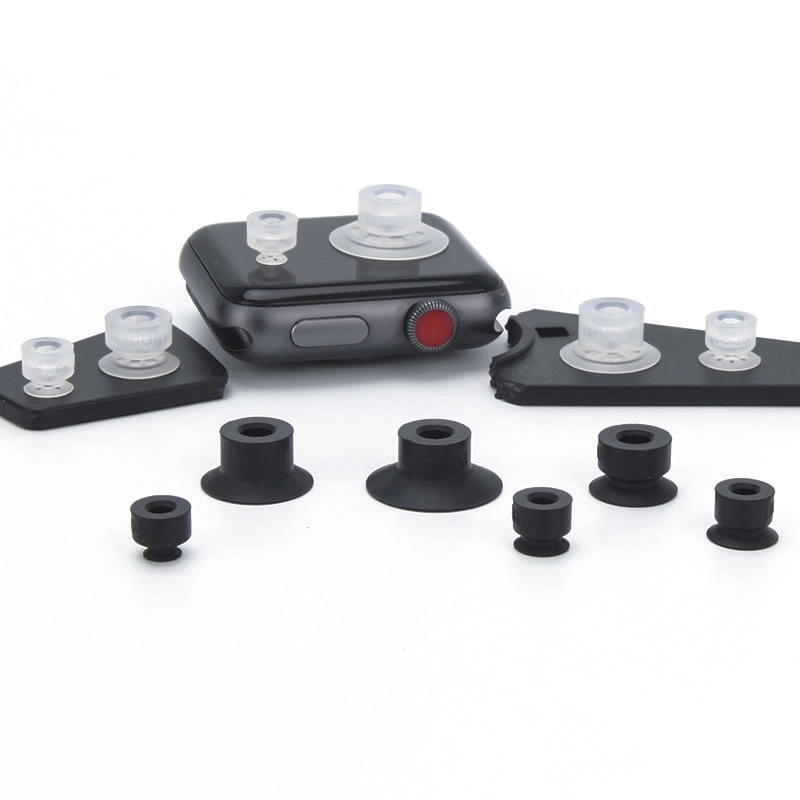

Tractantes parvas electronicarum partium et circuli tabulas.
Subvehendis praecise partes metalli et lithium cellularum altilium.
Integratio in linearum conventuum roboticarum ad ieiunium, iterabilem vagum et locum operationum.
Quid est ZP3P Series?
Summus perficientur variantes ZP3 designati sunt summus cyclus automation.
Multas magnitudines, figuras, et optiones materiales offert, diversas necessitates tenacis industriae occurrens.
Quae differentia est inter ZP3 et ZP3-T?
ZP3:Vacuum poculum latinum compactum ad accuratam tractationem.
ZP3-T:Consectetur in ambitibus sensibilibus vel chemicis summus temperatus, utens materias speciales.
Key Design Features
Foedus amplitudo ad spatia institutionem stricta.
Flexibile directiones vacuum (verticalis et lateralibus).
Adaptores libitum, uncis quiddam, et ferro omnia incorrupta accessiones sunt.
Pro stabili adhaesione et minimo vacuo detrimento constituto.
Quid Materiae Praesto sunt?
Qualis rubber et silicone.
Variationes anti-staticae pro electronicis.
Accessiones ferri immaculatae pro applicationibus lithium altilium.
Quod Pad figura utar?
Flat:Nam lenis, etiam superficiebus.
Aut follis profundus;Nam inaequale, leviter deformatum, vel textura.
Figurarum consuetudo:Foedus Vacuum Suctionis Cucurbitulae ZP3 nativus esse potest ad certas exigentias operis operis ac postulata systematis integrationis automated.

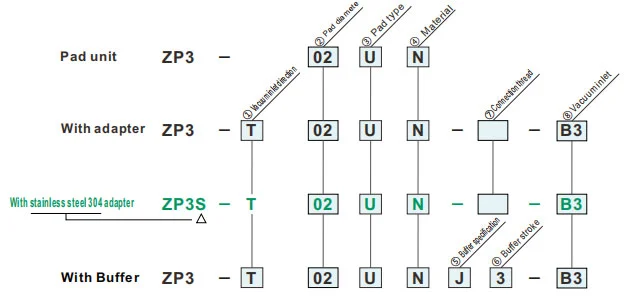

Quam ad Ordinem
| "Vacuum limbum directionem" | Connection thread | Vacuum inlet | |||||
| T | Vertical |
|
— |
A3A4 |
|||
|
— |
B3 |
|||||
|
A6 |
B3U404U2 |
|||||
|
— |
B304U2U4 |
|||||
| Y | lateralis |
|
B3 |
B304U2U4 |
|||
|
— |
B304U2U4 |
|||||
| Pad diametrum (mm) | |
| 015 | 1.5 |
| 02 | 2 |
| 035 | 3.5 |
| Pad genus | |
| U | Flat |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone Flexilis conductive |
Green symbol is amet Donec.
| Buffer specification | |
| J | Rotating |
| K | Non rotating |
| Buffer plaga | |
| 3 | 3mm |
| 6 | 6mm |
| Connection thread | |
| A6 | M6x0.75 (Male filum) |
| B3 | M3x0.5 (Female filum) |
| Vacuum inlet | |
| A3 | M3x0.5(male thread) |
| A4 | M4x0.7 (Male filum) |
| B3 | M3x0.5(Female thread) |
| 04 | -4 (Ona tactus tting) |
| U2 | ø2(Barb tting) |
| U4 | 4(Barb tting) |
Vere reactiveforce
| Codex type | Quiddam specification | Plaga quiddam (mm) | Connection filum | tensus tensus ±5% [N·m] |
Vis reciprocus [N] | |
| In 0 plaga | In plena plaga | |||||
| 1.5~ 3.5 | J | 3,6 | M6 x0.75 | 1.5-1.8 | 0.2 |
0.4 0.5 |
| K | M8 x0.75 | 2.0-2.5 | ||||
| Adscendens Dimensiones nibh |
|
Codex diameticus: ø4 ~ø8
|
|
Codex diameticus: ø10 ~ø16
|
| "Vacuum limbum directionem" | Connection thread | Vacuum inlet | ||
| T | Vertical |
|
— |
A4A5H5 |
|
— |
B4B5 |
||
|
A10A12 |
B50406U2U4U6 |
||
|
— |
B50406U2U4U6 |
||
| Y | lateralis |
|
B5 |
B50406U2U4U6 |
|
— |
B50406U2U4U6 |
||
| Pad diametrum (mm) | |
| 04 | 4 |
| 06 | 6 |
| 08 | 8 |
| 10 | 10 |
| 13 | 13 |
| 16 | 16 |
| Pad genus | |
| UM | Plana cum fossa |
| B | Follis |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone Flexilis conductive |
Green symbol is amet Donec.
|
Buffer specification
⑥ plaga Buffer (mm)
|
3 | 6 | 10 | 15 | 20 | |
| 3 | 6 | 10 | 15 | 20 | ||
| J | Rotating | ● | ● | ● | — | — |
| JB | Rotating (In Bushing) | — | — | — | ● | ● |
| K | Non rotating | ● | ● | ● | ● | ● |
| Connection thread | |
| A10 | M10x1 (Male filum) |
| A12 | M12x1 (Male filum) |
| B5 | M5x0.8 (Stamina femina) |
| Vacuum inlet | |
| A4 | M4x0.7 (Male filum) |
| A5 | M5x0.8 (Male filum) |
| H5 | M5x0.8 (Male filum) |
| B4 | M4x0.7 (Female thread) |
| B5 | M5x0.8 (Stamina femina) |
| 04 | -4 (tactus tting) |
| 06 | 6 (ttingtting) |
| U2 | 2 (Barb tting) |
| U4 | 4 (Barb tting) |
| U6 | 6 (Barb tting) |
Dimensiones (mm)
Green symbol is amet Donec.
U
Flat
| Model | A | B | |||
|
② Pad dia. |
③ Pad type |
④ Pad Materia |
|||
| ZP2 | 015 | U |
N S U F GN GS |
1.5 | 3 |
| 02 | 2 | 4 | |||
| 035 | 3.5 | 6 | |||
Exemplar refer: ZP3-015UGN
Adscendens Dimensiones nibh
UM
Plana cum fossa
| Model | A | B | C | D | E | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Materia |
|||||||
| ZP3 | 04 | UM |
N S U F GN GS |
4 | 4.5 | 1.2 | 7 | 6 | 0.5 |
| 06 | 6 | 6.5 | 2 | 0.8 | |||||
| 08 | 8 | 8.5 | |||||||
| 10 | 10 | 11 | 2 | 9 | 7 | 1 | |||
| 13 | 13 | 14 | 1.2 | ||||||
| 16 | 16 | 17 | |||||||
Exemplar refer: ZP3-04UMGN
B
Follis
| Model | A | B | C | D | E | F | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Materia |
||||||||
| ZP3 | 04 | B |
N S U F GN GS |
4 | 4.5 | 1.8 | 1.8 | 7 | 8 | 2.2 |
| 06 | 6 | 7 | 2 | 3.4 | 3 | |||||
| 08 | 8 | 9 | 5.2 | |||||||
| 10 | 10 | 11 | 2 | 6 | 9 | 10 | 2 | |||
| 13 | 13 | 14 | 3 | 8.4 | ||||||
| 16 | 16 | 17 | 11.4 | |||||||
Exemplar refer: ZP3-04UMGN
Codex Materialis et Characteribus
: Parum vel non influence: Potest esse fretus conditionibus X: Non convenientem
| Codex type | Codex diameter (mm) | Applicationem | Typical workpiece superficiebus et figuris | |||||||
| Flat | postquam levaverunt | Obliquus | Altitudines diversas | Convex | Pinguis | |||||
|
|
|
|
|
|
|||||
| Foedus P ad | Flat (U) |
|
1.5~ 3.5 | Nam adsorptio operis per plana et non deformata superficies | ⚪ | X | X | X | X | X |
| Plana sulcus (UM) |
|
4~ø16 | Nam quod est verisimile deformare workpiece | ⚪ | X | X | X | X | △ | |
| Follis (B) |
|
4~ø16 | Nam adsorptionem operis superficies inclinata pieces | ⚪ | △ | ⚪ | X | △ | X | |
Codex Materialis et Characteribus
: Parum vel non influence: Potest esse fretus conditionibus X: Non convenientem
|
Materia
Characteres
|
Symbolum | Durometer HS (±5°) |
Color of* rubber |
Operans temperatus range (°C) |
Oleum resistentia gasoline |
Oleum resistentia benzol |
Base resistentia |
Acidum resistentia |
Weatherability | Oxone resistentia |
Abrasion resistentia |
IMPERVIUS | Solvendo resistentia (Benzene, toluene) |
Applicationem |
| NBR | N | 50 | Niger | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Translatio operis generalis, tabulam corrugatam, laminam ferream, laminam ferream et cetera |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, remotionem a jactu moriendi, opus tenue, processus cibi |
| Urethane rubber | U | 50~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugata tabula, lamina ferrea, lamella Veneer |
| FKM | F | 60 | Niger | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Opus chemicum |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | Opus generale semiconductoris (Resistentiae electricitatis Static) | |
| Silicone rubbe | GS | 50~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (electricity Static) |
Mensa superior tantum notas generales de re cum rubber materialium tegit. Blue symbol is customized models.
Adumbratio applicationis partium pneumaticorum (poculi vacui suctionis) in variis campis industrialibus
I. Caput vires
II. Extraction applicationes per industriam
A. Medicina et industria medici
A.1： Core requisita:Munda et libera pollutio (FDA/GMP obsequentia), mansueta et non damnosa, et praeventionis crux-contaminatio.
A.2 Key missiones:
1. Pharmaceutical packaging: utrem medicamento / lamella pharmaceutica / infusio RAPINA sacculi (cibi gradus siliconis poculi suctionis, nulla particula fundens)
2. Medicinae fabrica conventus: instrumenta chirurgica / catheters medical / fragmenta prosthesis pertractatio (opportuna negativa pressura, deformatio tutelae)
3. Laboratorium biologicum: petri catino / tubum centrifuge / reagens card translationem (repugnans chemica, compatible sterilis)
B. Electronics et semiconductor industriae
B. 1 Caput requisita:anti-static (10⁶-10¹¹Ω), praecisio positionis (errore ≤0.01mm), scabere resistentia
B. 2 Key missiones:
1. Chip/Semiconductor: laganum pertractatio, chip packaging (ceramic/anti-static silicone poculum suctionis, pressionis negativae uniformis ne rupturam)
2. PCB/Componentes: Flexibile PCB, partium microform (resistentium 0402) superficies conseptatae (tenues siliconis/gel/microtae suctionis poculorum ne rugae/discerpendae)
3. Exhibe: tabula LCD/OLED, tange iaculis vitreum (materia alta perspicua, maculas nullas et exasperat)
C. Automobile et autocinetum partium industriam
C. 1 Core requisita:magna suctio (orbis unius suctionis ≥500N), accommodatio multi-specificationis (metal/plastic/vitri), non-lapsi
C.2 Clavis missionum:
4. Corpus fabricandi: lamina ferrea / ostium artus tractatio welding (magna diameter rubber / multi-suctus calicis instructus, textura anti-lapsi)
5. Vitrum / Interior: Windscreen installation, pellicea sedis superficies translatio (temperatus resistens silicone / spongiae suctus calicum, deformationis munimentum)
6. Partes: corpus cylindricum engine / gearbox habitationi iaculis (cincinno vacuo + mechanica, anti-lapso)
D. Cibum et industriam packaging
D.1 Caput postulatum:Cibus gradus materiales (FDA certified), facile ad mundandum, opprimendum renitentem
D.2 Clavis missionum:
1. Cibum tractatio: bona cocta / caro recens / fructus sorting
2. Packaging automation: packaging pera foramen, lobortis sterilis corona (statim eliminationem / multi-punctum suctionis, ad tenues / difficile packaging apta)
E. Logistics and warehoousing industry
R.1 Caput requisita:aptatio efficientis (multa species bonorum), pressio stabilis, anti-lapsio
R.2 Key missiones:
1. Caxton tractantem: e-commerce lobortis sorting (adjustable suctionis ordinata, pressura vacuum)
2. Tabula / roll: Lignum tabula / plastic film translatio volumen (longum habena/poculum annulale suctus, adsorption uniformis ne offset)
F. Nova energia et industriae speciales
F. 1 Nova industria (lithium altilium/pv);
1. Lithium bracteae altilium (poculum anti-staticum porosum suctionis, pulvis anti-pulvis), vitrum photovoltaicum (suctionis siliconis magnae suctionis calicis, sine scabere)
F. 2 Typographia et charta
1. Paper / re captae typis (papyrus materia absorbens, pressus negativus levis ne contagione lacerat et atramentum)
III. De core adaptationis logicae Summarium
| Workpiece characteres | Pipette adaptatio programma | Industriam missiones correspondentes |
| Tenuis / fragilis / Precision | Silicone/terrae ceramicae, pressio negativa micro, micro suctus COLLUM | Electronic semiconductores, pharmaceuticals |
| Gravis items / magna magnitudine | Purgamentum materia, magna diametri poculum suctionis, multi-suctio calicis ordinata | Autocineta, tabulae logistics |
| Salutem / praeventionis pollutio | Cibus/medicinae silicone gradus, facile ad structuram mundandam | Medicina, cibus |
| Mollis / superficies irregulares | Materia spongia, calix deformabilis suctus | Car interiora, cibus |
| Antistatic requisita | Silicone antistatic, ion ventus adiuvatur | electronic semi-ductor |
