Vacuum suctus nucleus solutio est "captiva flexilis" in automatione industriae cum quattuor nucleis commoda: comprehensio non damnosa, aptabilitas ad officinas multi-materia/irregularis, munda et environmental tutela, ac flexibilis operatio. Accommodari potest ad varias industrias notas of officinarum (graciles/crass, exquisitas/crassas, sanitate/vexillas).

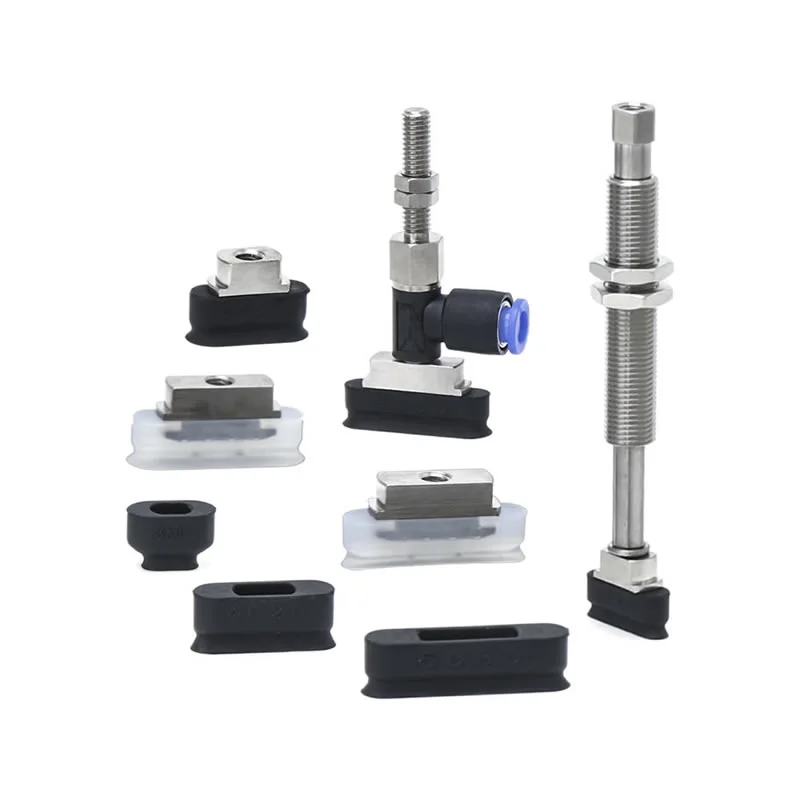

Oval Vacuum Suctionis Cucurbitulae ZP2
Ut primarius Sinarum opificem, officinas nostras offert Cucurbitulae Oval Vacuum Suctionis customised ZP2 pro gracilibus operis spatiis in angustiis. Praesto in 12 specificationibus (e.g., 3.5-7 ad 8×30mm), haec solutio directa solutionis aequabilitatem pressionis ac tenaci stabilitatem praestat. Cum 6-50mm buffers ad libitum et materias anti-staticas, specimen est pro PCB, altilium et celeritate sarcinarum linearum.
Click et Satus Electio
Redi ad Product Information
Oval Vacuum Suctionis Cucurbitulae ZP2

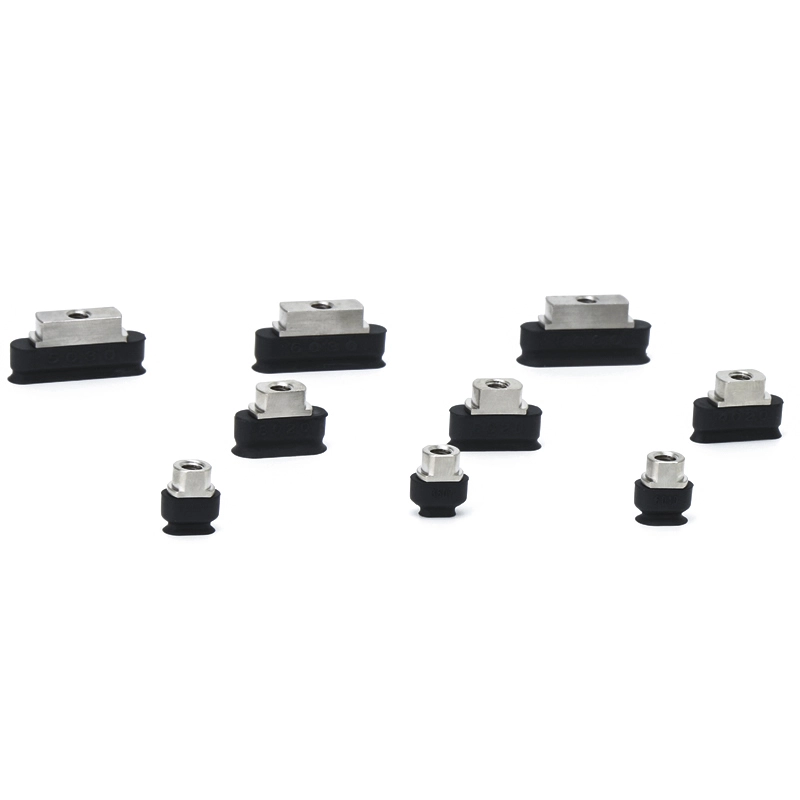

ZP2 Series Oval Vacuum Pad Unit

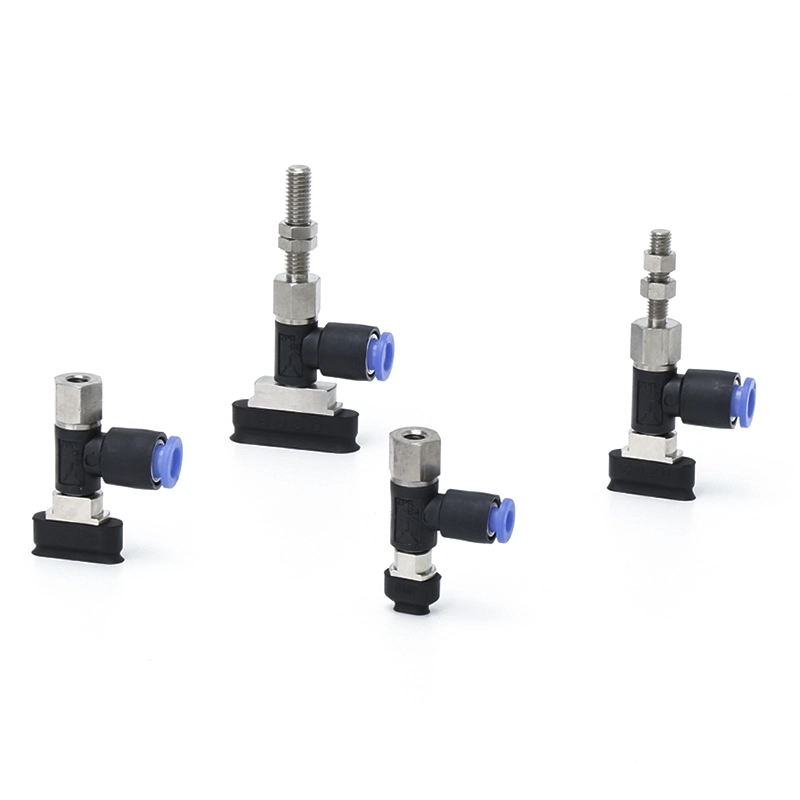

ZP2-T Series Cum Adapter Oval Vacuum Pad

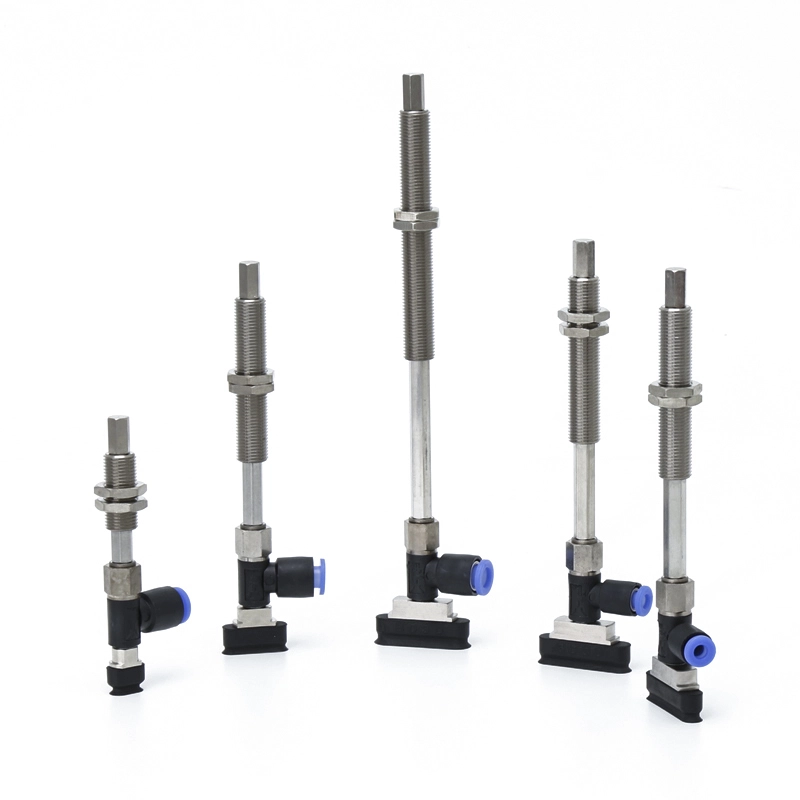

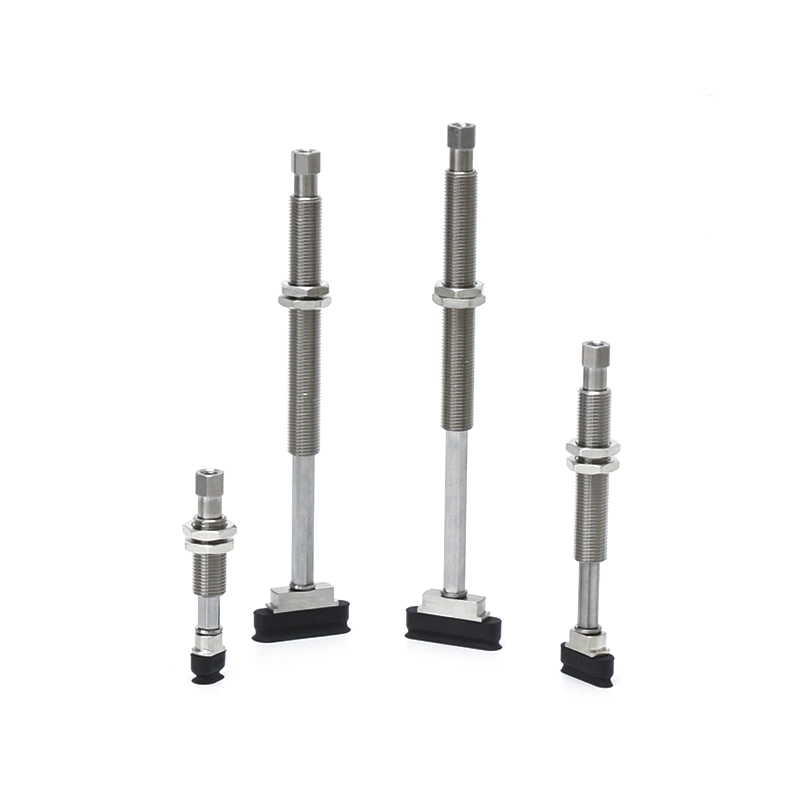

ZP2-T Series Cum Buffer Vacuum Pad
ZP2-R Series Cum Adapter Oval Vacuum Pad
ZP2-R Series Cum Buffer Vacuum Pad
Descriptio
Quam ad Ordinem
Formularium / Material
Applications
Resource
Ut primarius fabrica Sinarum, officinas nostras praebet nativus Oval Vacuum Suctionis Cucurbitulae ZP2 solutiones ad severas postulationes electronicarum et sectorum automotivarum discriminatam. Utrum summus volubilis es elit vel finis utentis, nostra series ZP2 ovalis tradit fidem ad praecisionem pertractandam necessariam.
Key Features Technical et Specifications
Extensive Teli Specifications 1.
Ut ad perfectum aptam ad omne opus graciles, offerimus 12 normas specificas pro Cucurbitulis Oval Vacuum Suctionis ZP2:
Foedus Amplitudo:3.5×7, 4×10, 5×10, 6×10mm.
Medium Longitudines:4×20, 5-20, 6-20, 8×20mm.
Extensum adfer:4×30, 5×30, 6×30, 8×30mm.
2. Industria Imprimis Material Excellence
Summus gradus utimur materiae ad aequare opus environment:
Summus Quality Silicone & NBR:Ad generalem propositum et summus temperatus munia.
Anti-static (ESD) Materias:Essentiale ad PCB et tractatio semiconductoris.
All-Steel Accessories:Configurationes speciales optimized pro Lithium Pugna Industry.
Core Commoda & Highlights
Optimized in angustiis:Arta figura Ovalis Vacuum Suctionis Cucurbitulae ZP2 concedit ut densitas alta in frequentibus PCBs vel angustis profiles fasciculis legendis ubi circulares scyphos simpliciter non aptant.
Grip Stabilitatem consectetur:Spatium suctionis elongatae praebet ampliorem "vestigium" in tenuibus elementis sicut fistulae vel ligaturae obsignationis, signanter minuendo periculum operis inclinatio vel inclinatio.
Flexibile instruitur:Sustinet utrumque verticale et laterale vacuum sinibus. Quisque poculum excipere potest cum adaptore vel bracket quiddam (6mm-50mm plaga) ad ictum in fragilibus superficiebus mitigandum.
Factory-Direct Supple:Nostrae officinae Sinarum fundatae conservat magnum volumen productorum stirpis, ut brevia tempora plumbea et certamina certaminum globalis procurationis obtineat.
Typical Application missiones
Electronics & Semiconductores:PCB conventus, ambitus flexibilis tabulae fabricationis, et altilium electrode positionis.
Automotiva Partes:Oval Vacuum Suctionis Cucurbitulae ZP2 frequentius adhibentur ad tractandum et conventum denudat sigillandi, frusta elongata, et perfiles plasticae.
Packaging & Logistics:High-speed labeling, carton sealing, and sorting of packages elongated.

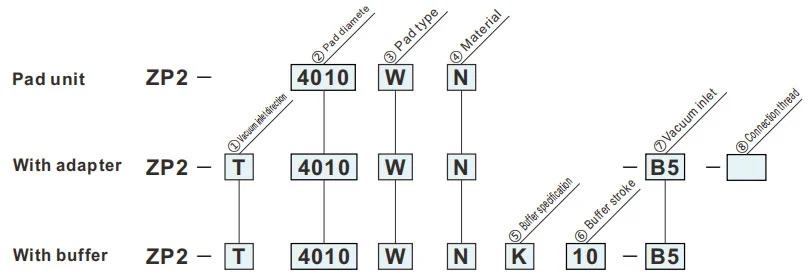

Quam ad Ordinem
- Operis fragmenta cum limitationibus in adsorptionsurface.
| "Vacuum limbum directionem" | vacuum inlet | Connection thread | ||
| T | Vertical |
|
B5 |
— |
|
B50406 |
— | ||
| R | lateralis |
|
0406 |
B5 |
|
0406 |
A5 |
||
|
0406 |
— | ||
| Pad magnitudine | |
| 3507 | 3.5 x7 |
| 4010 | 4 x10 |
| 5010 | 5 x10 |
| 6010 | 6 x10 |
| 4020 | 4 x20 |
| 5020 | 5 x20 |
| 6020 | 6 x20 |
| 8020 | 8 x20 |
| 4030 | 4 x30 |
| 5030 | 5 x30 |
| 6030 | 6 x30 |
| 8030 | 8 x30 |
| Pad genus | |
| W | Oval |
| vacuum inlet | |
| B5 | M5x0.8(female) |
| 04 | 4One-touchfitting |
| 06 | 6one-touchfitting |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone Flexilis conductive |
Green symbol is amet Donec.
| Buffer specification | |
| K | Non rotating |
| Buffer plaga | |
| 10 | 10mm |
| 20 | 20mm |
| 30 | 30mm |
| 40 | 40mm |
| 50 | 50mm |
| Connection thread | |
| A5 | M5x0.8(Male) |
| B5 | M5x0.8(female) |
Dimensiones (mm)
Green symbol is amet Donec.
PP
Cubus type
| Model | A | B | C | D | E | Y | |||
|
② Pad Magnitudo |
③ Pad type |
④ Pad Materia |
|||||||
| ZP2 | 3507 | W |
N S U F GN GS |
3.5 | 4.5 | 7 | 8 | 2×ø1.5 | 0.5 |
| 4010 | 4 | 5 | 10 | 11 | |||||
| 5010 | 4 | 6 | 2.5 | ||||||
| 6010 | 6 | 7 | |||||||
| 4020 | 4 | 5 | 20 | 21 | 2×ø1.8 | 0.5 | |||
| 5020 | 5 | 6 | 2×ø2 | ||||||
| 6020 | 6 | 7 | 2.5 | ||||||
| 8020 | 8 | 9 | 3 | 0.8 | |||||
| 4030 | 4 | 5 | 30 | 31 | 2×ø1.8 | 0.5 | |||
| 5030 | 5 | 6 | 2.5 | ||||||
| 6030 | 6 | 7 | |||||||
| 8030 | 8 | 9 | 0.8 | ||||||
Exemplar refer: ZP2-4030WS
Adscendens Dimensiones nibh
Codex applicabilis: 3507W/4010W/5010W/6010W
Codex applicabilis: 4020W/5020W/6020W/8020W
Codex applicabilis: 4030W/5030W/6030W/8030W
Codex Materialis et Characteribus
: Parum vel non influence: Potest esse fretus conditionibus X: Non convenientem
|
Materia
Characteres
|
Symbolum | Durometer HS (±5°) |
Color of* rubber |
Operans temperatus range (°C) |
Oleum resistentia gasoline |
Oleum resistentia benzol |
Base resistentia |
Acidum resistentia |
Weatherability | Oxone resistentia |
Abrasion resistentia |
IMPERVIUS | Solvendo resistentia (Benzene, toluene) |
Applicationem |
| NBR | N | 50 | Niger | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Translatio operis generalis, tabulam corrugatam, laminam ferream, laminam ferream et cetera |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, remotionem a jactu moriendi, opus tenue, processus cibi |
| Urethane rubber | U | 50~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugata tabula, lamina ferrea, lamella Veneer |
| FKM | F | 60 | Niger | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Opus chemicum |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | Opus generale semiconductoris (Resistentiae electricitatis Static) | |
| Silicone rubbe | GS | 50~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (electricity Static) |
Mensa superior tantum notas generales de re cum rubber materialium tegit. Blue symbol is customized models.
Adumbratio applicationis partium pneumaticorum (poculi vacui suctionis) in variis campis industrialibus
I. Caput vires
II. Extraction applicationes per industriam
A. Medicina et industria medici
A.1： Core requisita:Munda et libera pollutio (FDA/GMP obsequentia), mansueta et non damnosa, et praeventionis crux-contaminatio.
A.2 Key missiones:
1. Pharmaceutical packaging: utrem medicamento / lamella pharmaceutica / infusio RAPINA sacculi (cibi gradus siliconis poculi suctionis, nulla particula fundens)
2. Medicinae fabrica conventus: instrumenta chirurgica / catheters medical / fragmenta prosthesis pertractatio (opportuna negativa pressura, deformatio tutelae)
3. Laboratorium biologicum: petri catino / tubum centrifuge / reagens card translationem (repugnans chemica, compatible sterilis)
B. Electronics et semiconductor industriae
B. 1 Caput requisita:anti-static (10⁶-10¹¹Ω), praecisio positionis (errore ≤0.01mm), scabere resistentia
B. 2 Key missiones:
1. Chip/Semiconductor: laganum pertractatio, chip packaging (ceramic/anti-static silicone poculum suctionis, pressionis negativae uniformis ne rupturam)
2. PCB/Componentes: Flexibile PCB, partium microform (resistentium 0402) superficies conseptatae (tenues siliconis/gel/microtae suctionis poculorum ne rugae/discerpendae)
3. Exhibe: tabula LCD/OLED, tange iaculis vitreum (materia alta perspicua, maculas nullas et exasperat)
C. Automobile et autocinetum partium industriam
C. 1 Core requisita:magna suctio (orbis unius suctionis ≥500N), accommodatio multi-specificationis (metal/plastic/vitri), non-lapsi
C.2 Clavis missionum:
4. Corpus fabricandi: lamina ferrea / ostium artus tractatio welding (magna diameter rubber / multi-suctus calicis instructus, textura anti-lapsi)
5. Vitrum / Interior: Windscreen installation, pellicea sedis superficies translatio (temperatus resistens silicone / spongiae suctus calicum, deformationis munimentum)
6. Partes: corpus cylindricum engine / gearbox habitationi iaculis (cincinno vacuo + mechanica, anti-lapso)
D. Cibum et industriam packaging
D.1 Caput postulatum:Cibus gradus materiales (FDA certified), facile ad mundandum, opprimendum renitentem
D.2 Clavis missionum:
1. Cibum tractatio: bona cocta / caro recens / fructus sorting
2. Packaging automation: packaging pera foramen, lobortis sterilis corona (statim eliminationem / multi-punctum suctionis, ad tenues / difficile packaging apta)
E. Logistics and warehoousing industry
R.1 Caput requisita:aptatio efficientis (multa species bonorum), pressio stabilis, anti-lapsio
R.2 Key missiones:
1. Caxton tractantem: e-commerce lobortis sorting (adjustable suctionis ordinata, pressura vacuum)
2. Tabula / roll: Lignum tabula / plastic film translatio volumen (longum habena/poculum annulale suctus, adsorption uniformis ne offset)
F. Nova energia et industriae speciales
F. 1 Nova industria (lithium altilium/pv);
1. Lithium bracteae altilium (poculum anti-staticum porosum suctionis, pulvis anti-pulvis), vitrum photovoltaicum (suctionis siliconis magnae suctionis calicis, sine scabere)
F. 2 Typographia et charta
1. Paper / re captae typis (papyrus materia absorbens, pressus negativus levis ne contagione lacerat et atramentum)
III. De core adaptationis logicae Summarium
| Workpiece characteres | Pipette adaptatio programma | Industriam missiones correspondentes |
| Tenuis / fragilis / Precision | Silicone/terrae ceramicae, pressio negativa micro, micro suctus COLLUM | Electronic semiconductores, pharmaceuticals |
| Gravis items / magna magnitudine | Purgamentum materia, magna diametri poculum suctionis, multi-suctio calicis ordinata | Autocineta, tabulae logistics |
| Salutem / praeventionis pollutio | Cibus/medicinae silicone gradus, facile ad structuram mundandam | Medicina, cibus |
| Mollis / superficies irregulares | Materia spongia, calix deformabilis suctus | Car interiora, cibus |
| Antistatic requisita | Silicone antistatic, ion ventus adiuvatur | electronic semi-ductor |
