Vacuum suctus nucleus solutio est "captiva flexilis" in automatione industriae cum quattuor nucleis commoda: comprehensio non damnosa, aptabilitas ad officinas multi-materia/irregularis, munda et environmental tutela, ac flexibilis operatio. Accommodari potest ad varias industrias notas of officinarum (graciles/crass, exquisitas/crassas, sanitate/vexillas).

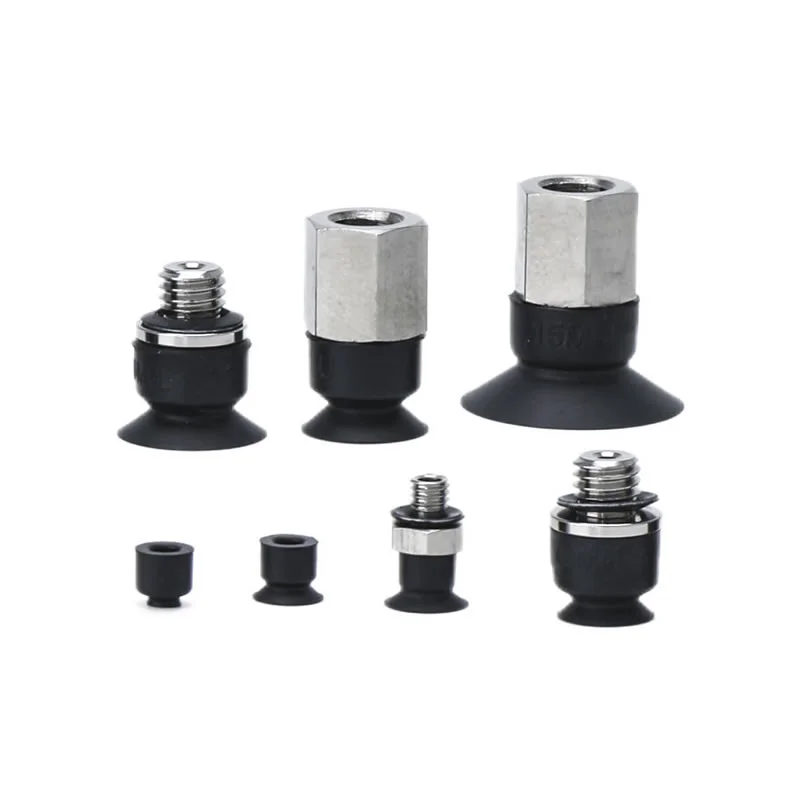

Brevis typus Vacuum suctionis Cucurbitulae ZP2-MU
Ut Sinarum opificem primarium, officinas nostras offert Consuetum Brevis typus Vacuum Suctionis Cucurbitulae ZP2-MU (ø2-15mm). Aliquam profile humilem pro strictis spatiis et silicone anti-statice. Adhibitis silicone, NBR, et materiis anti-staticis, cum componentibus ferro omnibus incorruptis, hoc productum est aptum usui in altilium lithio et industriarum semiconductorum.
Click et Satus Electio
Redi ad Product Information
Brevis typus Vacuum suctionis Cucurbitulae ZP2-EU
ZP2 Series Brevis typus Vacuum Pad Unit
ZP2-T Series Cum Adaptor Brevis typus Vacuum Pad
Descriptio
Quam ad Ordinem
Formularium / Material
Applications
Resource
Brevis typus Vacuum Suctionis Cucurbitulae ZP2-MU designatae sunt cum structura compacta et stabili, certa adsorptionem praebent.
Product Features:
Hoc calicem humilis profile suctionis est specimen institutionum cum spatio stricto. Eius superficies plana contactum prope aptam in fabrica efficit, suctionem constantem tradens deformationem obscurans, eamque aptam facit ad curandum opera pertractanda. Exempla selecta praebent proprietates anti-staticas, occurrentes requisitis ambitibus sensitivis sicut electronicis fabricandis.
Formularium:
Available in amplis diametris parvis, inclusis φ2, φ3.5, φ4, φ5, φ6, φ8, φ10, φ15, apta ad partes parvas et leves tractandas.

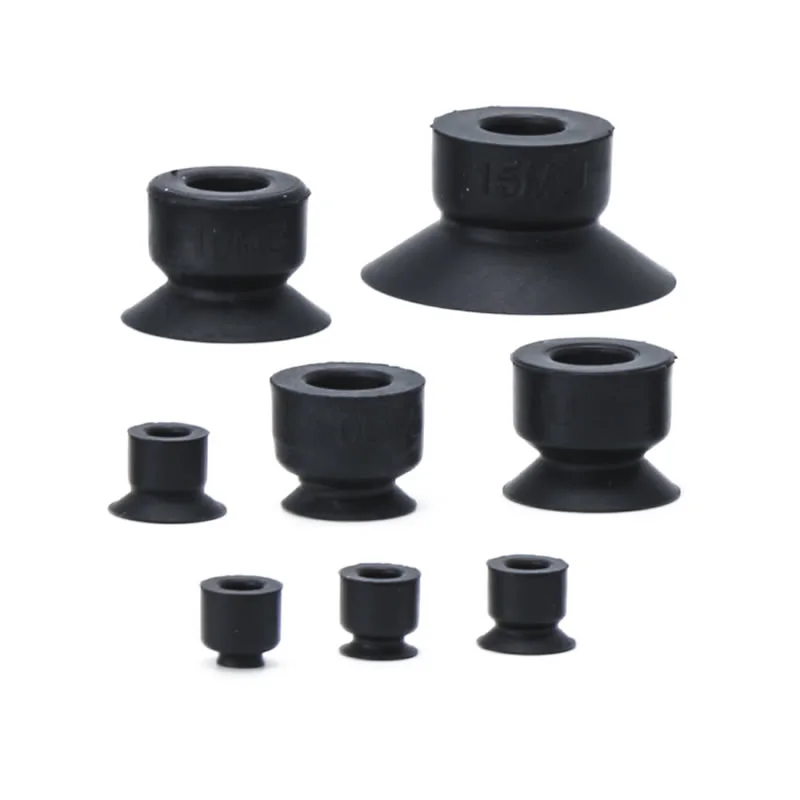

Materiae:
Optiones includunt NBR (flexilis nitrile), silicone importata, et silicone anti-statica, permittens electionem flexibilem secundum temperaturam, resistentiam induere, et necessitates tutelae electrostaticae.
Connection Options:

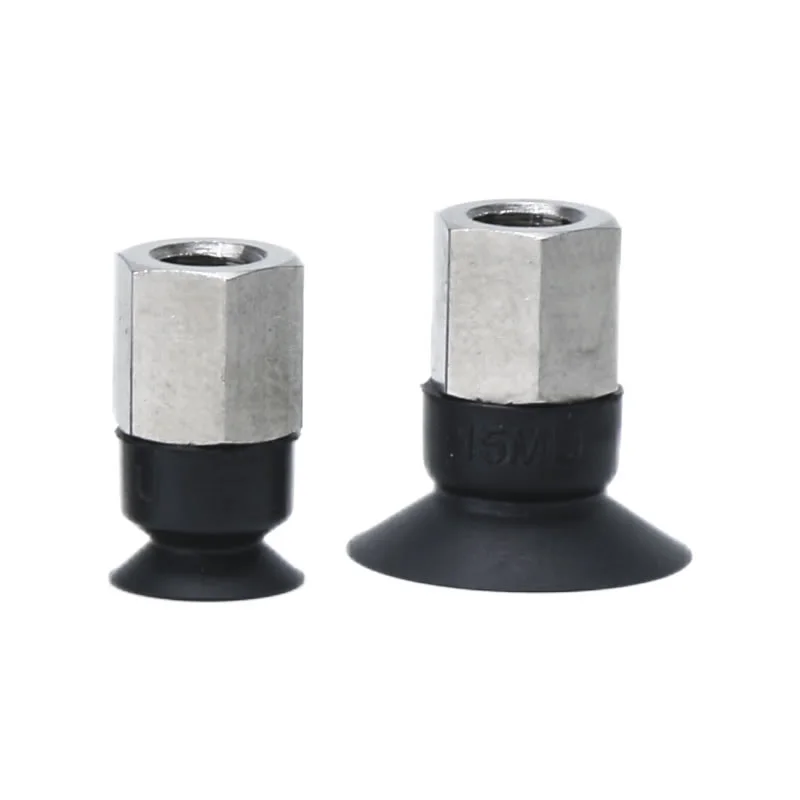

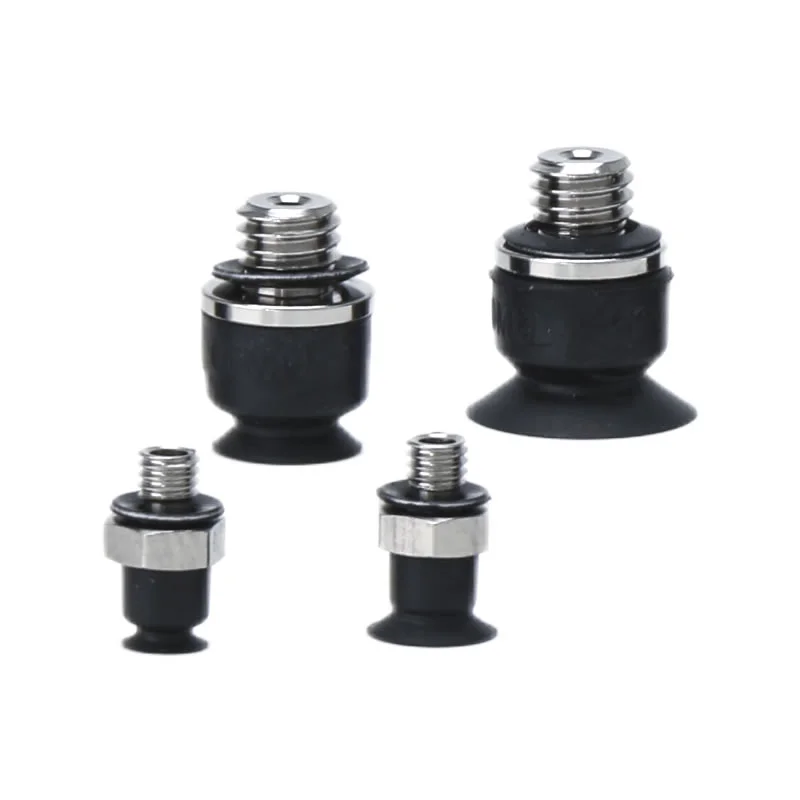

Brevis typus Vacuum Suctionis Cucurbitulae ZP2-MU sustinent multiplices configurationes ascendentes, inclusas fila externa (A3) et fila interna (B5), ut facilem integrationem in amplis systematibus instrumentorum efficiat.
FAQ
Quid est "MU" typus in ZP2?
Genus "MU" significat mini, ultra-pactationis (micro) consilium intra seriem ZP2.
Diametri valde parvae (φ2-φ15) ad subtilitatem pertractandam
Low-profile structuram pro stricta institutionem spatia
Optimized for leve, parvum amplitudo workpieces
Commaelec fabricat breve typus Vacuum suctionis Cucurbitulae ZP2-MU cum accuratione dimensiva stabili stabilis obeundis congruenter in systematibus summus praecisio.
Quae sunt key beneficia ZP2-MU?
Foedus amplitudo: specimen pro densa extensione et spatio stricto
Stabilis adsorption: planus consilium efficit certa signationem in parvis partibus
Subtilitas pertractatio: Regium deformatio in pick-and-place
Materia flexibilitas: NBR, silicone, et optiones anti-staticae in promptu sunt
Magna constantia: Commaelec administratio productionis uniformem qualitatem in mole usui praestat
Quae sunt medicamenta?
Electronics industria: chippis, parvae partes, PCB pertractatio (optiones anti-staticae praesto)
Subtilitas conventus lineas parvas plasticae vel metalli partes
Packaging automation: leve items et ieiunium cursus operationes
Micro-component pertractatio: ubi locus et accuratio critica sunt

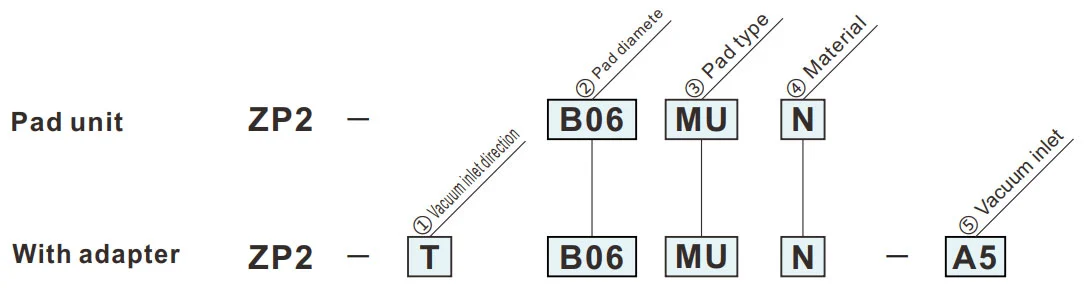

Quam ad Ordinem
- Spatium salutaris in altitudinem dirigitur.
| "Vacuum limbum directionem" | |
| T | Vertical |
| Pad genus | |
| MU | Genus plana |
|
Vacuum inlet
Codex diameter (mm)
|
B02 | B035 | B04 | B05 | B06 | B08 | B10 | B15 | |
| 2 | 3.5 | 4 | 5 | 6 | 8 | 10 | 15 | ||
| A3 | M3x0.5 (Male) | ● | ● | ● | ● | — | — | — | — |
| H5 | M5x0.8 (Male) | — | — | — | — | ● | ● | ● | ● |
| B5 | M5x0.8 (female) | — | — | — | — | ● | ● | ● | ● |
| Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Silicone Flexilis conductive |
Green symbol is amet Donec.
Dimensiones (mm)
Green symbol is amet Donec.
MU
Genus plana
| Model | A | B | C | D | E | F | G | H | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Materia |
||||||||||
| ZP2 | B02 | MU |
N S U F GN GS |
2 | 2.4 | 4 | 4 | 1 | 3 | 2 | 2.5 | 0.5 |
| B035 | 3.5 | 3.8 | ||||||||||
| B04 | 4 | 4.8 | 1.4 | 0.8 | ||||||||
| B05 | 5 | 5.8 | ||||||||||
| B06 | 6 | 6.7 | 7.5 | 6.5 | 2 | 6 | 4 | 4 | 0.8 | |||
| B08 | 8 | 8.8 | 8 | 7 | 1.2 | |||||||
| B10 | 10 | 10.6 | ||||||||||
| B15 | 15 | 15.6 | 9 | 8 | 2 | |||||||
Exemplar refer: ZP2-B035MUN
Adscendens Dimensiones nibh
Codex applicabilis: B02MU/B035MU/B04MU/B05MU
Codex applicabilis: B06MU/B08MU/B10MU/B15MU

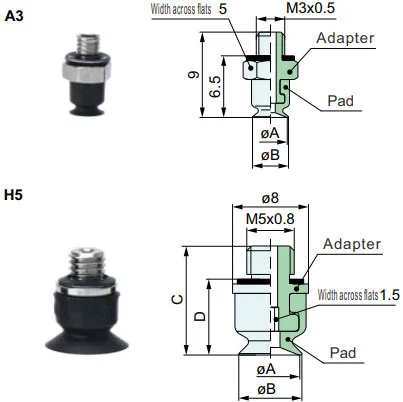

ZP2-T
Vertical
A3, H5
| Model | A | B | C | D | adaptor | |||||
|
① Vacuum diverticulum directionem |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑤ Vacuum diverticulum |
||||||
| ZP2 | T | B02 | MU |
N S U F GN GS |
A3 | 2 | 2.4 | — | — | ZP2A-M01P |
| B035 | 3.5 | 3.8 | ||||||||
| B04 | 4 | 4.8 | ||||||||
| B05 | 5 | 5.8 | ||||||||
| B06 | H5 | 6 | 6.7 | 11.5 | 8 | ZP2A-M02P | ||||
| B08 | 8 | 8.8 | 12 | 8.5 | ||||||
| B10 | 10 | 10.6 | ||||||||
| B15 | 15 | 15.6 | 13 | 9.5 | ||||||
Exemplar referendum: ZP2-TB10MUGS-H5
ZP2-T
Vertical
B5
| Model | A | B | C | D | adaptor | |||||
|
① Vacuum inletdirection |
② Pad dia. |
③ Pad type |
④ Pad Materia |
⑤ Vacuum diverticulum |
||||||
| ZP2 | T | B06 | MU |
N S U F GN GS |
B5 | 6 | 6.7 | 14.5 | 6.5 | ZP2A-M04 |
| B08 | 8 | 8.8 | 15 | 7 | ||||||
| B10 | 10 | 10.6 | ||||||||
| B15 | 15 | 15.6 | 16 | 8 | ||||||
Exemplar referendum: ZP2-TB10MUGS-B5
Codex Materialis et Characteribus
: Parum vel non influence: Potest esse fretus conditionibus X: Non convenientem
|
Materia
Characteres
|
Symbolum | Durometer HS (±5°) |
Color of* rubber |
Operans temperatus range (°C) |
Oleum resistentia gasoline |
Oleum resistentia benzol |
Base resistentia |
Acidum resistentia |
Weatherability | Oxone resistentia |
Abrasion resistentia |
IMPERVIUS | Solvendo resistentia (Benzene, toluene) |
Applicationem |
| NBR | N | 50 | Niger | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Translatio operis generalis, tabulam corrugatam, laminam ferream, laminam ferream et cetera |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, remotionem a jactu moriendi, opus tenue, processus cibi |
| Urethane rubber | U | 50~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugata tabula, lamina ferrea, lamella Veneer |
| FKM | F | 60 | Niger | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Opus chemicum |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | Opus generale semiconductoris (Resistentiae electricitatis Static) | |
| Silicone rubbe | GS | 50~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (electricity Static) |
Mensa superior tantum notas generales de re cum rubber materialium tegit. Blue symbol is customized models.
Adumbratio applicationis partium pneumaticorum (poculi vacui suctionis) in variis campis industrialibus
I. Caput vires
II. Extraction applicationes per industriam
A. Medicina et industria medici
A.1： Core requisita:Munda et libera pollutio (FDA/GMP obsequentia), mansueta et non damnosa, et praeventionis crux-contaminatio.
A.2 Key missiones:
1. Pharmaceutical packaging: utrem medicamento / lamella pharmaceutica / infusio RAPINA sacculi (cibi gradus siliconis poculi suctionis, nulla particula fundens)
2. Medicinae fabrica conventus: instrumenta chirurgica / catheters medical / fragmenta prosthesis pertractatio (opportuna negativa pressura, deformatio tutelae)
3. Laboratorium biologicum: petri catino / tubum centrifuge / reagens card translationem (repugnans chemica, compatible sterilis)
B. Electronics et semiconductor industriae
B. 1 Caput requisita:anti-static (10⁶-10¹¹Ω), praecisio positionis (errore ≤0.01mm), scabere resistentia
B. 2 Key missiones:
1. Chip/Semiconductor: laganum pertractatio, chip packaging (ceramic/anti-static silicone poculum suctionis, pressionis negativae uniformis ne rupturam)
2. PCB/Componentes: Flexibile PCB, partium microform (resistentium 0402) superficies conseptatae (tenues siliconis/gel/microtae suctionis poculorum ne rugae/discerpendae)
3. Exhibe: tabula LCD/OLED, tange iaculis vitreum (materia alta perspicua, maculas nullas et exasperat)
C. Automobile et autocinetum partium industriam
C. 1 Core requisita:magna suctio (orbis unius suctionis ≥500N), accommodatio multi-specificationis (metal/plastic/vitri), non-lapsi
C.2 Clavis missionum:
4. Corpus fabricandi: lamina ferrea / ostium artus tractatio welding (magna diameter rubber / multi-suctus calicis instructus, textura anti-lapsi)
5. Vitrum / Interior: Windscreen installation, pellicea sedis superficies translatio (temperatus resistens silicone / spongiae suctus calicum, deformationis munimentum)
6. Partes: corpus cylindricum engine / gearbox habitationi iaculis (cincinno vacuo + mechanica, anti-lapso)
D. Cibum et industriam packaging
D.1 Caput postulatum:Cibus gradus materiales (FDA certified), facile ad mundandum, opprimendum renitentem
D.2 Clavis missionum:
1. Cibum tractatio: bona cocta / caro recens / fructus sorting
2. Packaging automation: packaging pera foramen, lobortis sterilis corona (statim eliminationem / multi-punctum suctionis, ad tenues / difficile packaging apta)
E. Logistics and warehoousing industry
R.1 Caput requisita:aptatio efficientis (multa species bonorum), pressio stabilis, anti-lapsio
R.2 Key missiones:
1. Caxton tractantem: e-commerce lobortis sorting (adjustable suctionis ordinata, pressura vacuum)
2. Tabula / roll: Lignum tabula / plastic film translatio volumen (longum habena/poculum annulale suctus, adsorption uniformis ne offset)
F. Nova energia et industriae speciales
F. 1 Nova industria (lithium altilium/pv);
1. Lithium bracteae altilium (poculum anti-staticum porosum suctionis, pulvis anti-pulvis), vitrum photovoltaicum (suctionis siliconis magnae suctionis calicis, sine scabere)
F. 2 Typographia et charta
1. Paper / re captae typis (papyrus materia absorbens, pressus negativus levis ne contagione lacerat et atramentum)
III. De core adaptationis logicae Summarium
| Workpiece characteres | Pipette adaptatio programma | Industriam missiones correspondentes |
| Tenuis / fragilis / Precision | Silicone/terrae ceramicae, pressio negativa micro, micro suctus COLLUM | Electronic semiconductores, pharmaceuticals |
| Gravis items / magna magnitudine | Purgamentum materia, magna diametri poculum suctionis, multi-suctio calicis ordinata | Autocineta, tabulae logistics |
| Salutem / praeventionis pollutio | Cibus/medicinae silicone gradus, facile ad structuram mundandam | Medicina, cibus |
| Mollis / superficies irregulares | Materia spongia, calix deformabilis suctus | Car interiora, cibus |
| Antistatic requisita | Silicone antistatic, ion ventus adiuvatur | electronic semi-ductor |
Institutionem Manual
PDF Download
Admonitio +Cautio Read ante usus）
PDF Download
Hot Tags: Brevis typus Vacuum Suctionis Cucurbitulae ZP2-MU, China, Manufacturer, Supplier, Factory
Mitte Inquisitionem
Contactus info
-
Oratio
Xiaruan Villa Baishi oppidum Yueqing urbs Zhejiang provinciae China
-
Tel
-
E-mail
Percontationes de poculis vacui suctionis, generantibus vacuum, accessoriis pneuma- maticis vel indice pretioso, quaeso nobis electronicam tuam relinque et intra 24 horas erimus continuaturi.
